Result Exporting

Select Activity

Single Field

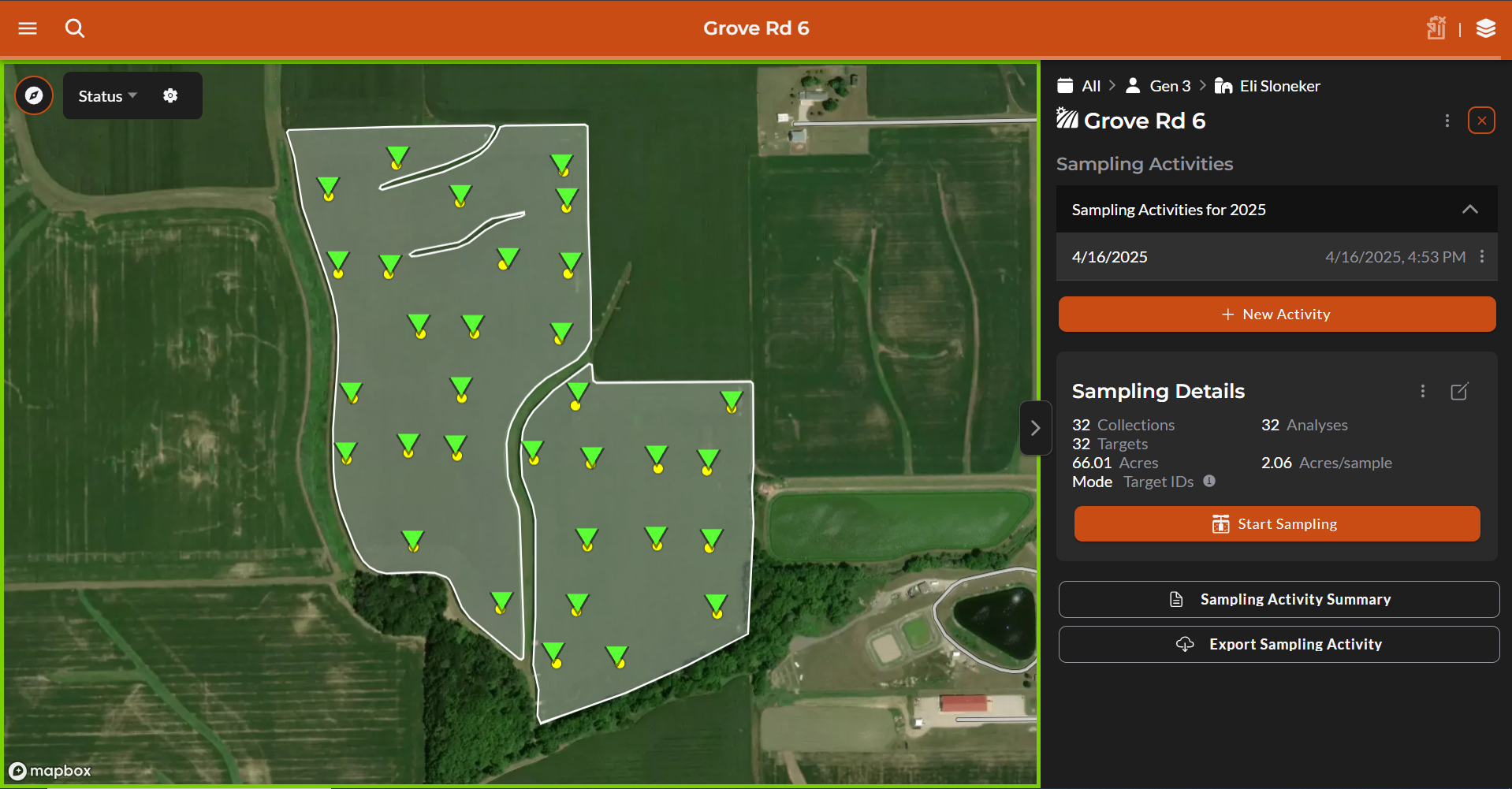

A single field can be selected from the Maps page either by clicking it on the map, or by searching in the field list on the right side of the page

Once a field is selected, open the sampling activity that you wish to export. Then click Export Sampling Activity in the lower right corner

This will open the export settings window, see below for details on export preferences.

export single activity.PNG

Batch Select

Multiple fields or activities can be batch selected for exporting. Filter criteria can be set in the sidebar on the Maps page. Fields and activities can be sorted by Client, Farm, Year, and/or Status. You can then toggle between the Fields or Activities tabs to select individual fields or activities from the filtered list. If a Field is selected on the list, all activities for that field will be exported. To export individual activities, select those on the Activities tab.

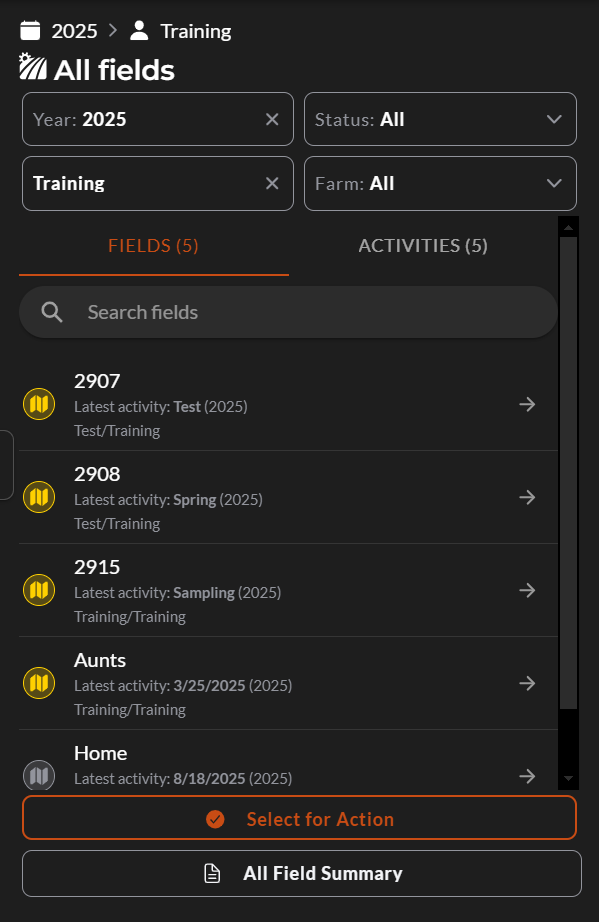

field filter.PNG

Once filters are set, you can select individual fields or activities by clicking Select for Action at the bottom of the sidebar, then clicking the checkboxes next to the fields or activities that you wish to export. If you wish to select all fields or activities in the filtered list, click Select all.

After making your selection, click the Export button at the bottom of the sidebar

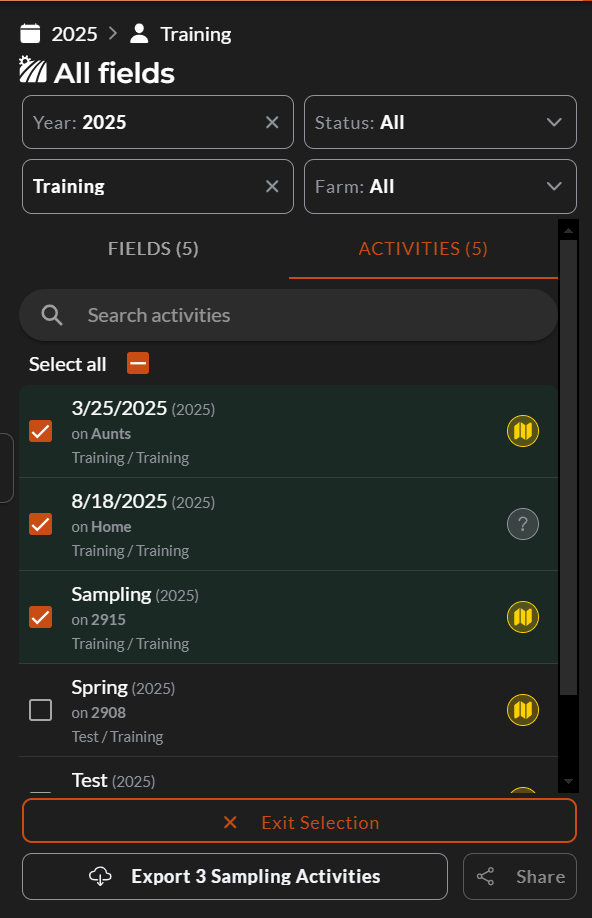

bulk export.PNG

Export Preferences

Analysis Conversions and Units

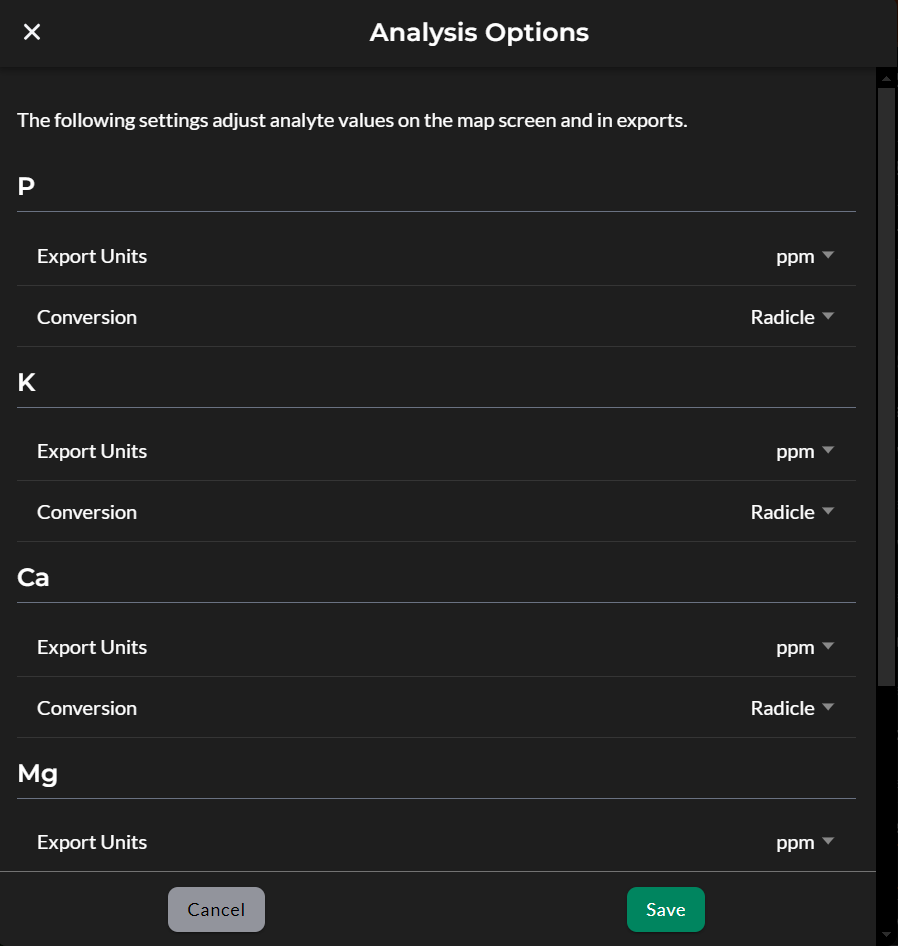

Click Adjust conversions and units per analyte if you would like to adjust results to a particular estimated value, or to change result units between ppm (parts per million) and lbs./acre (pounds per acre).

The default reported values for each analyte are the native Radicle Lab values. For a full explanation of the Radicle Lab methods and native values, reference the Radicle Lab Interpretations Guide. Each analyte value can be converted to other method types if needed. For more details on available conversions, reference the interpretations guide.

Click Save once you have selected your preferred settings

analysis units and conversions.PNG

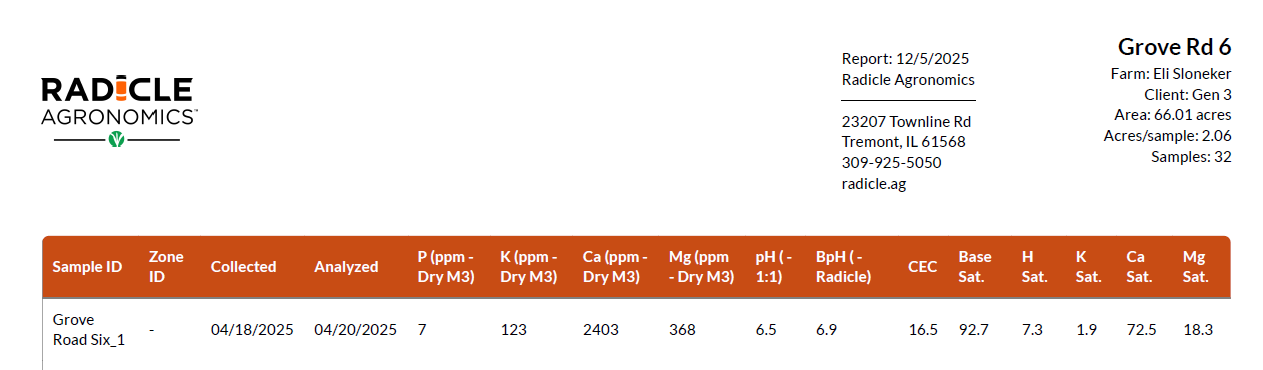

Upon export, the data column headers will change to reflect the analysis conversions you have selected

column headers.PNG

Date Preference

Choose your preferred date format setting, then select which dates you would like to include in the export. You choose to include collected date, analyzed data, both, or neither.

date preferences.PNG

Export File Types

One or multiple file format types can be selected to export from the Radicle App. Below are details on the file formats and available options for each.

Shapefiles

There are a few options for exporting shapefiles out of the Radicle App. If the Shapefiles option is checked, you can choose to select one or multiple options listed below:

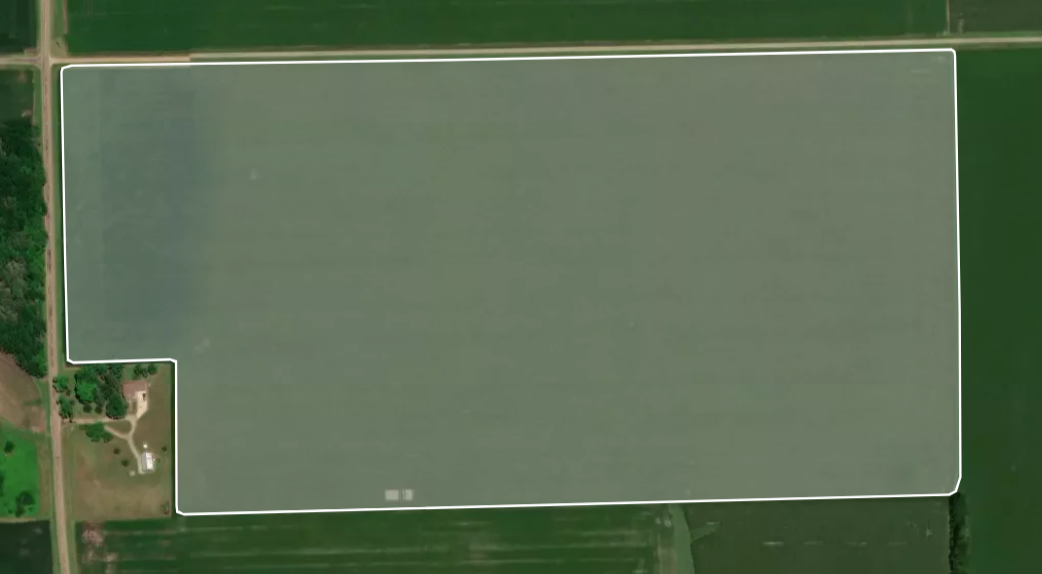

  • Boundary

    field boundary.PNG

  • Zones (will include analysis data if the zones have been sampled and analyzed)

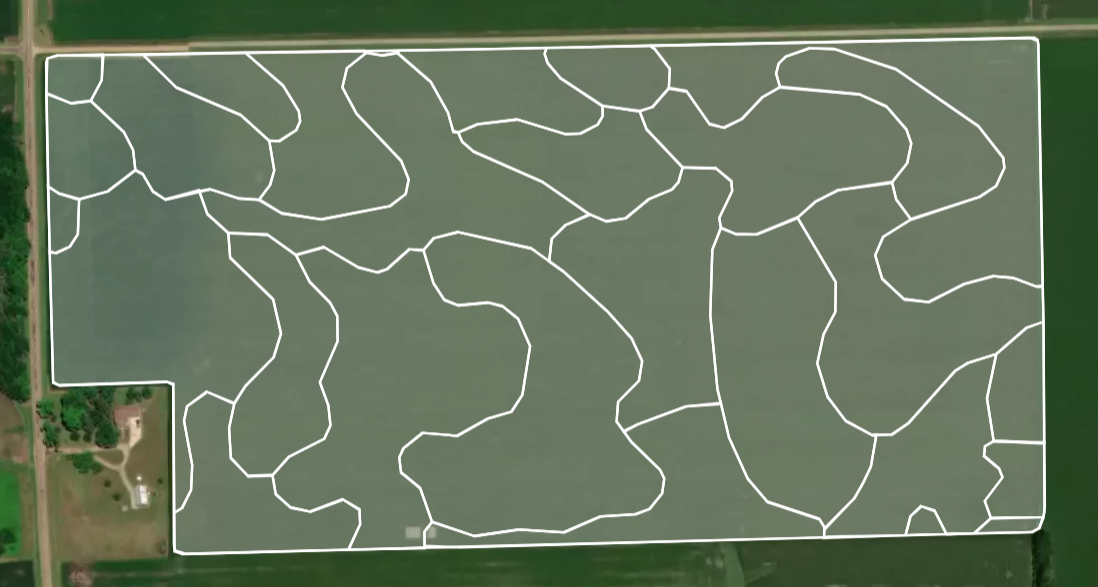

    sampling zones.PNG

  • Collection points (with analysis data)

    collection points.PNG

  • Target points (no analysis data)

    target points.PNG

CSV

Results will export as a geo-referenced CSV file. Column headers in the CSV will reflect any analysis conversions you have set up in export preferences

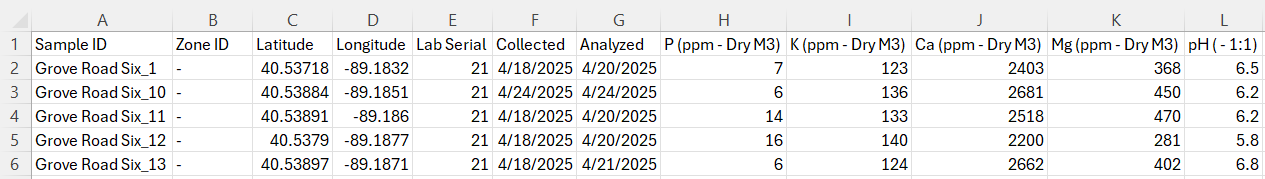

csv export.PNG

PDF

A tabular PDF report with or without analysis maps can be exported from the Radicle App. Customizable options for the PDF include

  • PDF Map: Select whether you want to include maps along with the tabular report
  • Use Operation Address and Logo: Include your business logo and contact information on the report. For more information, reference PDF Report Customization
  • Show Field Average Values: Include median soil test values for the field on the report
  • Include Maps (only shown if PDF maps are selected)
    • Sample ID map only: One map with target points and/or sampling zones with sample ID labels
    • Analyte Maps: Include maps for P, K, Ca, Mg, pH, and Buffer pH
    • All Analysis Maps: Same as above plus maps for CEC, base saturation, %K, %Ca, %Mg, and %H

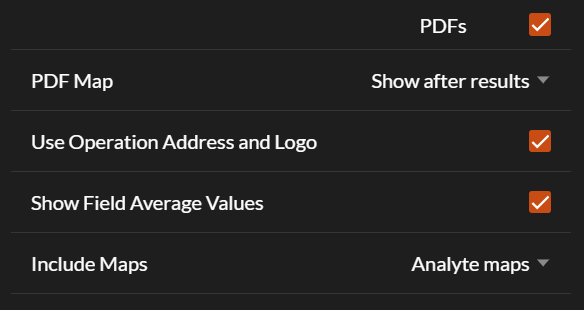

pdf export.PNG

Once your export preferences are set, click the Export button on the bottom of the window. A loading circle will appear in the bottom left corner of the map. While the export processes, you can continue navigating through the app while it finishes. Once the export is complete, a window will appear with a confirmation message.

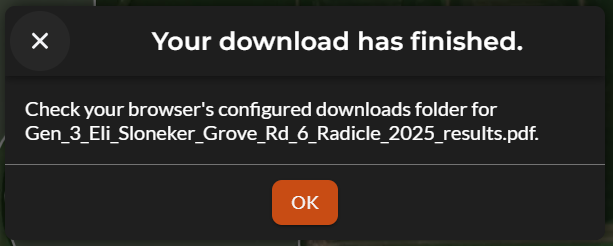

export confirmation.PNG

If exporting a shapefile, a bundle of different file format types, or a batch of multiple fields/activities, the data will be exported in a zipped folder. All files will be saved to wherever your browser is set up to save downloaded files.
