- Download the new software version off the web. Ensure that the file name is geopress.raub. If additional numbers or special characters are added to the name, the GeoPressTM unit will not recognize it and the update will fail
- Find a USB thumb drive and make sure no other GeoPress software versions are installed on it. If there are multiple versions of GeoPress software on the USB drive, the update will fail.
- Recommended USB drive format is 32GB or less and formatted as FAT32
- This can be checked by right-clicking on the USB drive on your computer and selecting "Properties"
- Recommended USB drive format is 32GB or less and formatted as FAT32
- Copy and paste the software onto the USB drive
- Don't past the software file in a folder or zipped file on the USB drive. Simply paste the software file on the USB drive on it's own.
Before installing a USB thumb drive, always disconnect the GeoPress from its main power source. For the GeoPress Ultra, engage the E-STOP button first, then disconnect the main power source. Verify that the machine is fully powered down before accessing any USB ports.

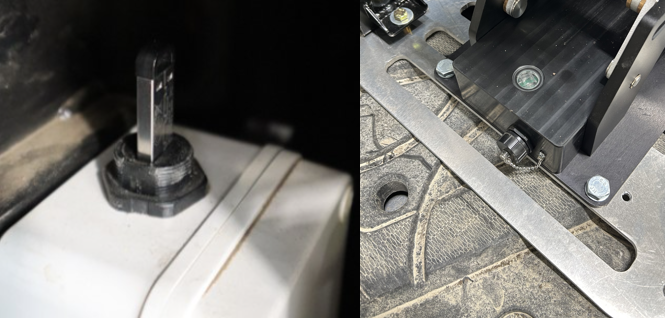

Each version of GeoPress Lite has a different way to access the USB port. Follow the instructions below for the version that you have.
- GeoPress
- Remove the lid by pushing upward on the four corners of the lid
- Locate the GeoPress Master Module on the left side
- Remove the dust cap
- Insert thumb drive
- GeoPress
- GeoPress Lite Rev 1 (rectangular plastic module)
- Locate The USB port on the front-right side
- Remove dust cap and insert thumb drive
- GeoPress lite Rev 2 (hexagonal plastic module)
- Remove the bottom plate by taking out the six torx head screws using a T30 torx driver
- Attach thumb drive to the raspberry pi module on either the upper or lower middle USB port
- GeoPress lite Rev 3 (integrated module, orange press handle)
- Pull down tube loading handle to access USB-C port cover.
- Remove USB-C port cover with a flathead screwdriver
- Plug in USB-C flash drive. A USB-A flash drive with adapter would also work
- Once the flash drive is installed, power on the GeoPress
- If the GeoPress is successfully updating software, it should take about 2 minutes for the modules to come online and for the LED status light to start flashing yellow
- Normal start up time is about 1 minute
- Remove the USB drive, put the dust cap back on.
Connect the iPad to the GeoPress and check the Master version on the GeoPress page to confirm the software was updated.
Note: The master version on the app should show the number for the software version that was installed. The picture below just shows where the master version number is shown.
