There are two options for importing shapefiles into an existing field and activity:
- With the Create Fields button on the first-level map page
- In the Sampling Activity Edit pages
Option 1

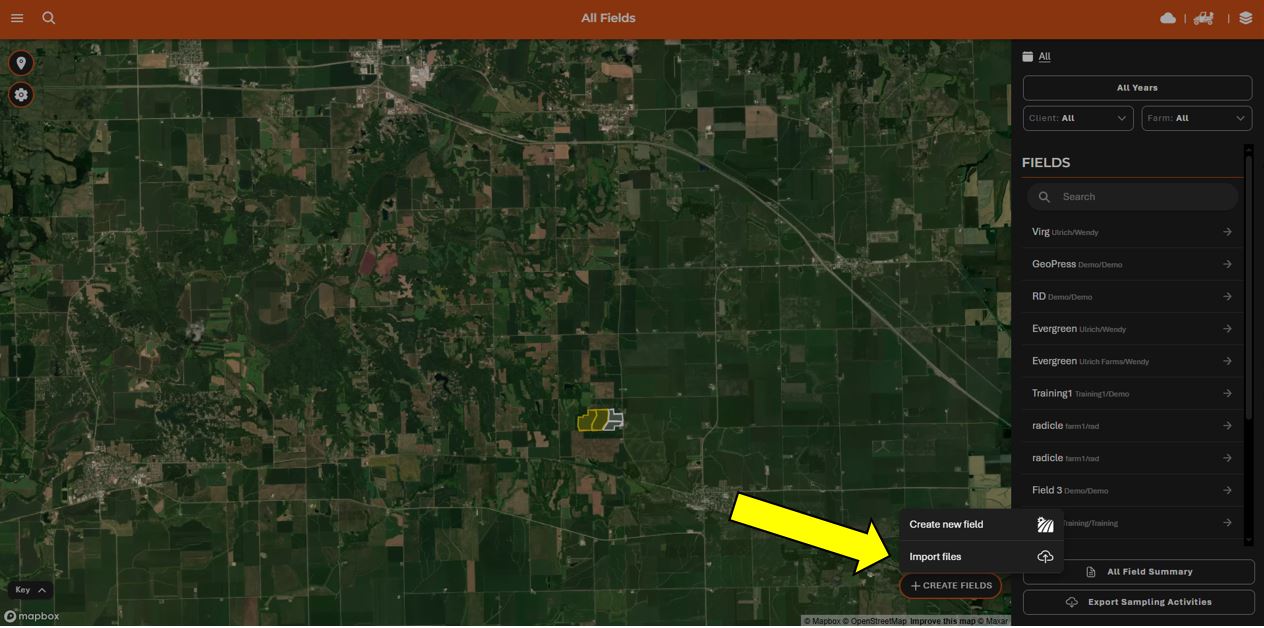

Click Create Fields in the bottom right corner of the map, and then click Import Files

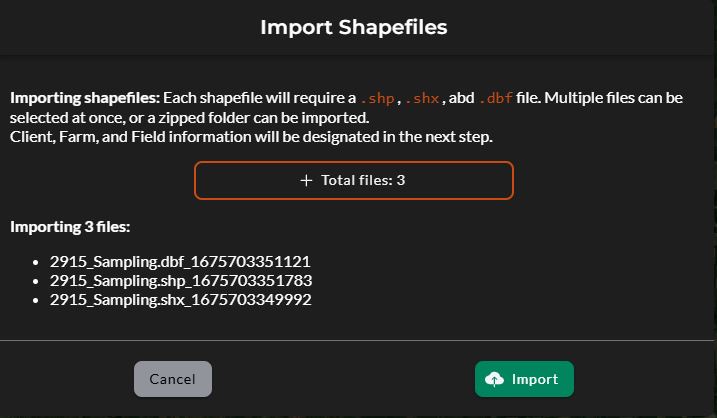

Click Select Files and choose the shapefile that you want to import into an existing field. Field selection will be done on the next step

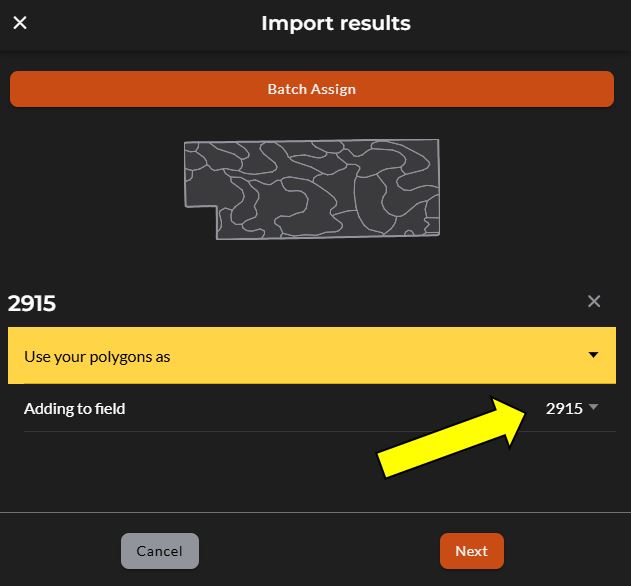

Since the field boundary already exists on the account, the sampling file will automatically assign to the field based on the location. The name of the field is displayed on the import window

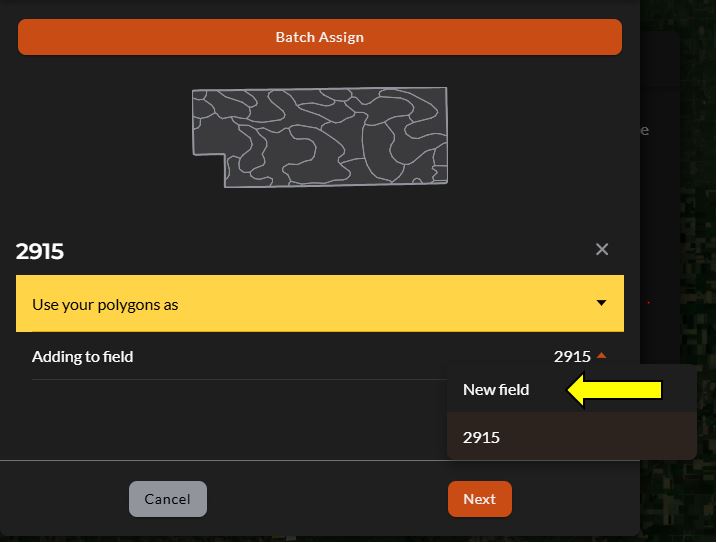

If you decide to import the shapefile as a new field, click the dropdown arrow next to the field name and select
Note: Reference Importing a New Field for further instructions on steps to import a new field

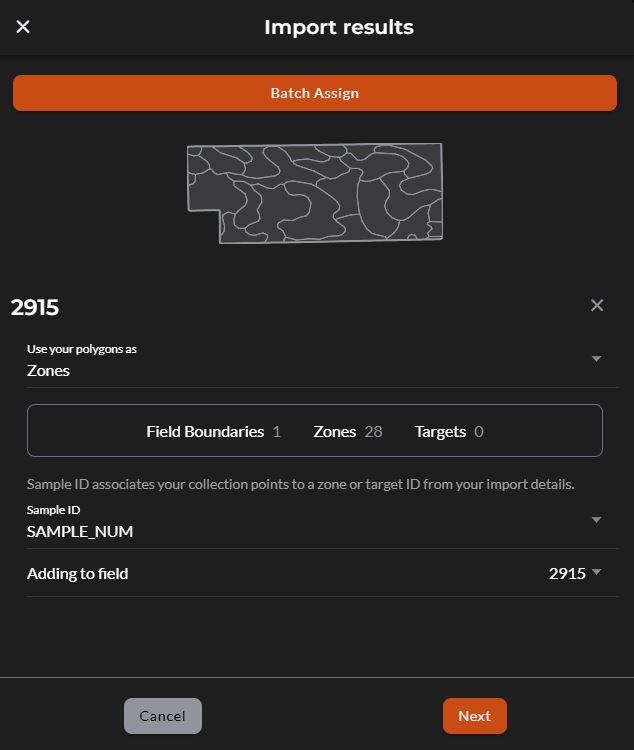

Next, set the "Use your polygons as" setting to the shapefile type that you are importing. In this example, we are importing zones and we will need to select a sample ID attribute
When complete, click Next

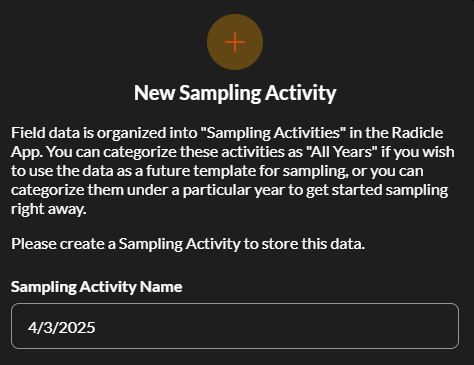

On the Set Up Activities page, enter a new name for the activity. This can be a generic name that helps distinguish one activity from another within the same year. Examples for the name could be the type of samples that are being collected (ex: Fertility), or the date that the activity is created.
Next, select a year for the activity. By default, the current year will be selected

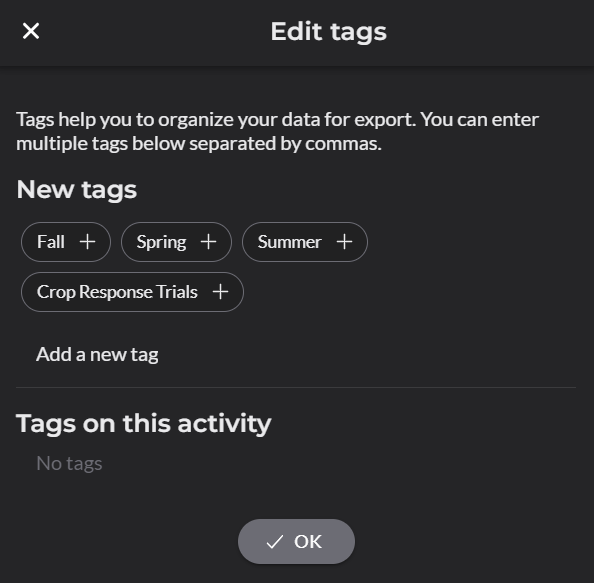

Optional tags can be added to the activity. Applying tags to activities helps filter data for a year. For example, tagging an activity as "Spring" or "Fall" will help filter activities by season on the map, or when exporting data.

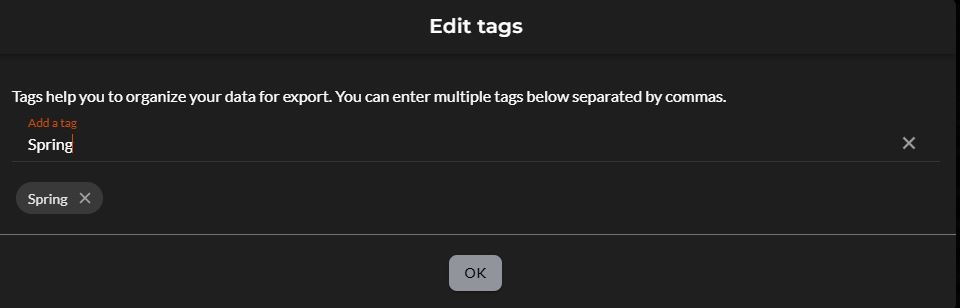

Or you can add a custom tag by click next to Add a New Tag ,then pressing OK
By click Assignees you can assign the new activity to a user within your organization. Clicking on the dropdown menu will give you a list of available usernames to choose from.

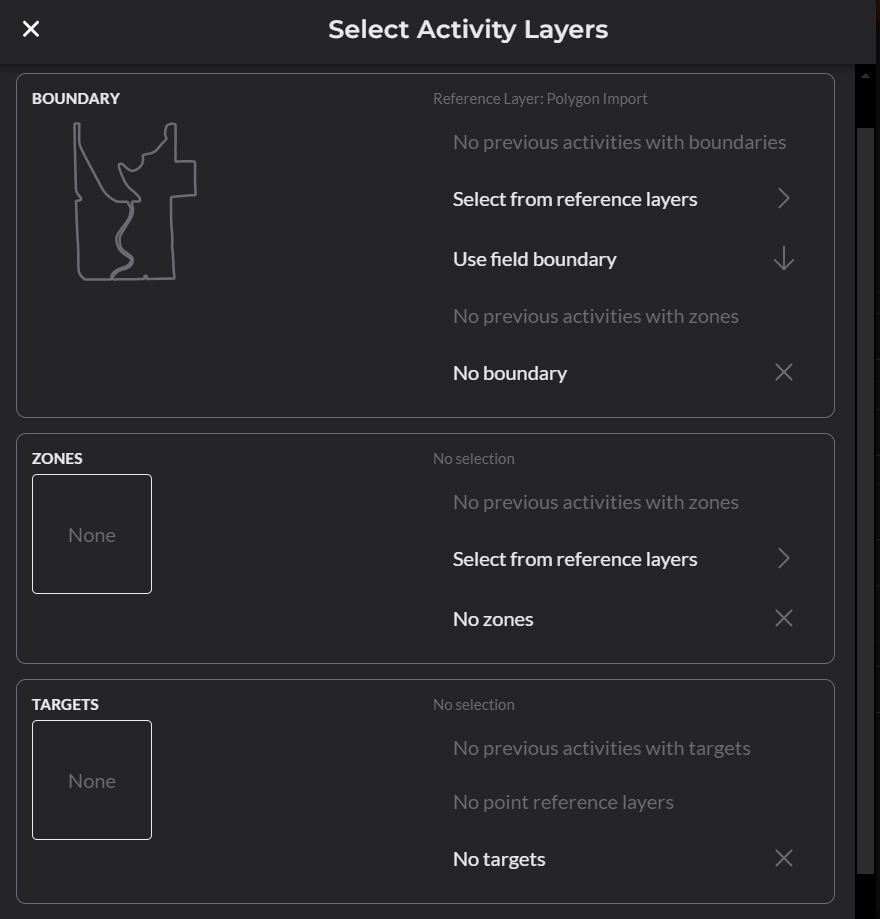

The Preview column gives a quick view of the map layers that will be used to create the sampling activity. Clicking the edit button next to the map preview allows you to add or edit map features that are apart of the activity. This allows you to do things like swap the boundary file from a different one, or choose a target point or zone map layer if one exists in the field's reference layers. Or, you can remove a map layer by selecting No boundary/zones/targets. Click Done at the bottom of the window to exit the activity layers page.
They Undo icon next to the map preview will reset the activity settings back to default, and the red X will remove the field from the bulk activity setup list.

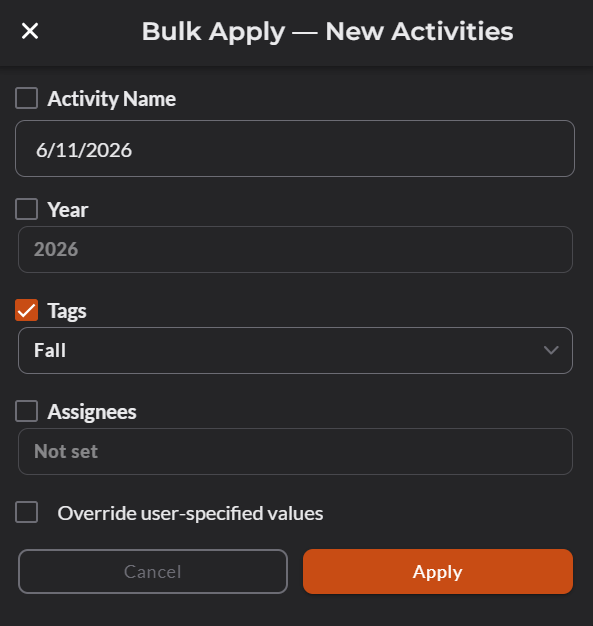

Clicking Bulk Apply in the upper right corner opens a window that allows you to set activity attributes for all activities at once. Click Apply once your settings are entered
To finish, click Create Activities
Option 2
Boundaries, sampling zones, and target points can be imported into an existing field and activity through the sampling activity edit pages. Below are steps to import through the edit page:
Open a field, and select the Sampling Activity Edit button. There are two ways to open the edit page:
Option 1

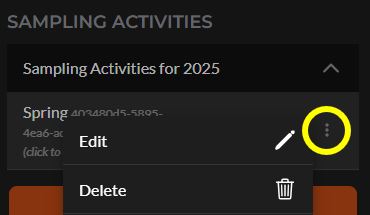

Click the menu next to the sampling activity, and then click Edit
Option 2

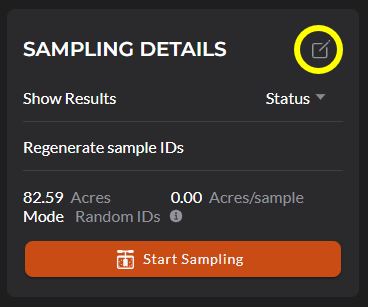

Click the Edit icon in the sampling details window

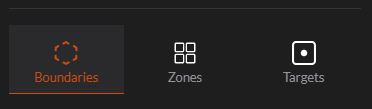

Once the activity edit page is open, select the tab for the type of shapefile you are importing.
Boundary
To import a boundary, select the Boundaries tab

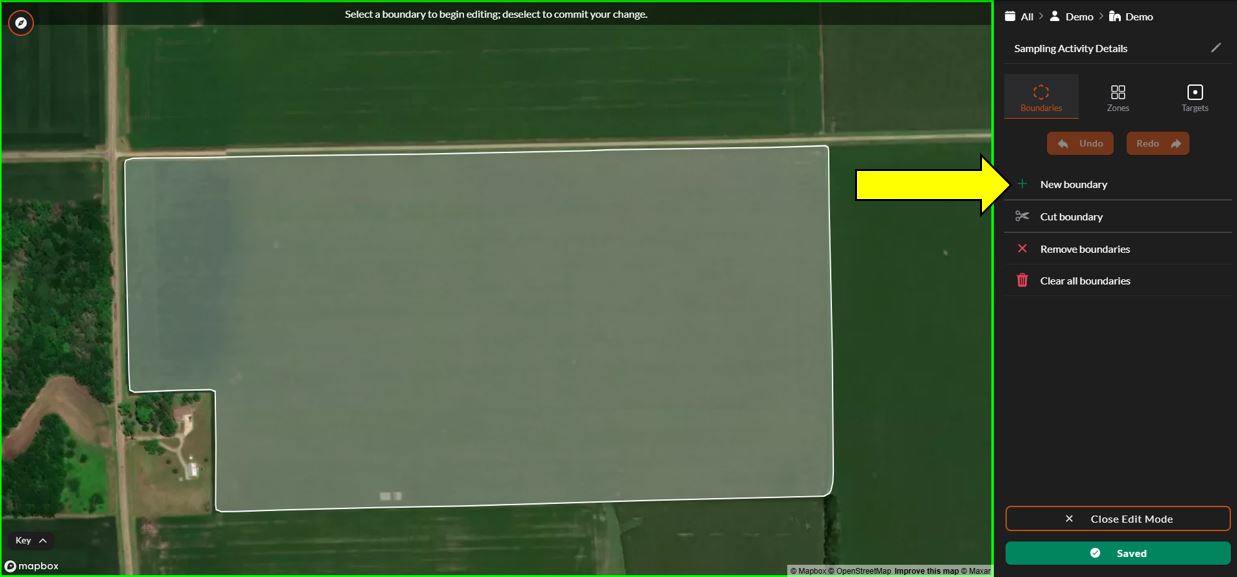

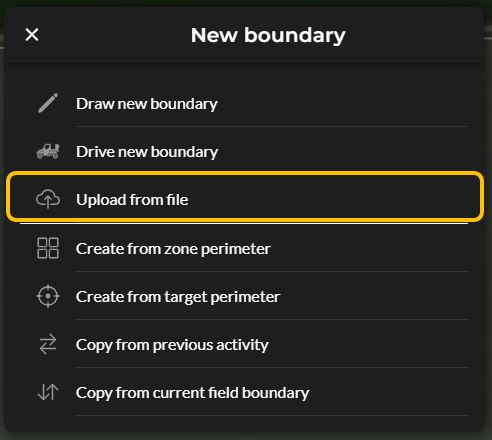

Select New Boundary from the edit menu, then select Upload from file on the new boundary window

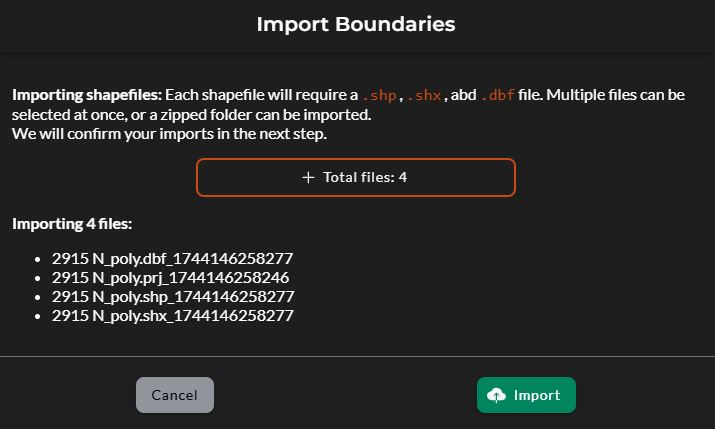

On the import window, click Select Files and choose the boundary shapefile to import, and then click Import

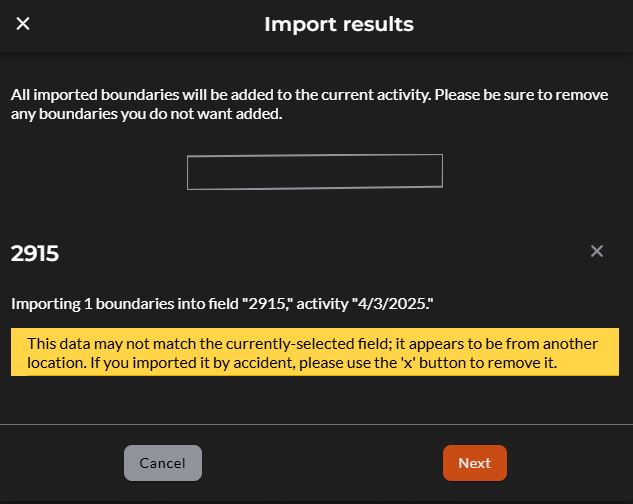

The import results window will show a preview of the shapefile that was selected. To proceed with importing the selected boundary, click Next. To cancel and select a differetn shapefile, you can either click Cancel or the "X" on the right side of the window.

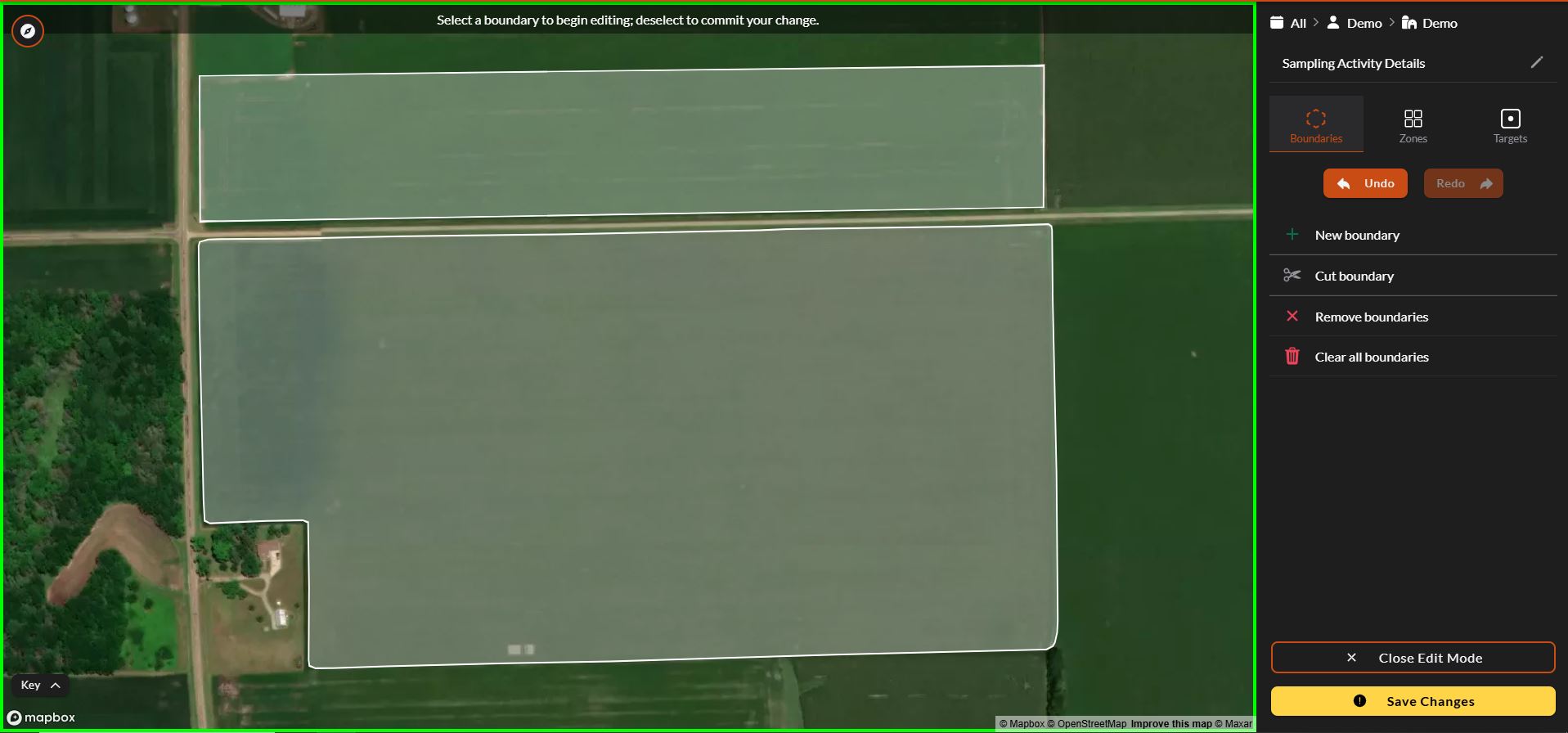

If Next is selected, the new boundary will be shown on the map. Click Save Changes to save the boundary to the activity.
Zones
To import sampling zones, select the Zones tab

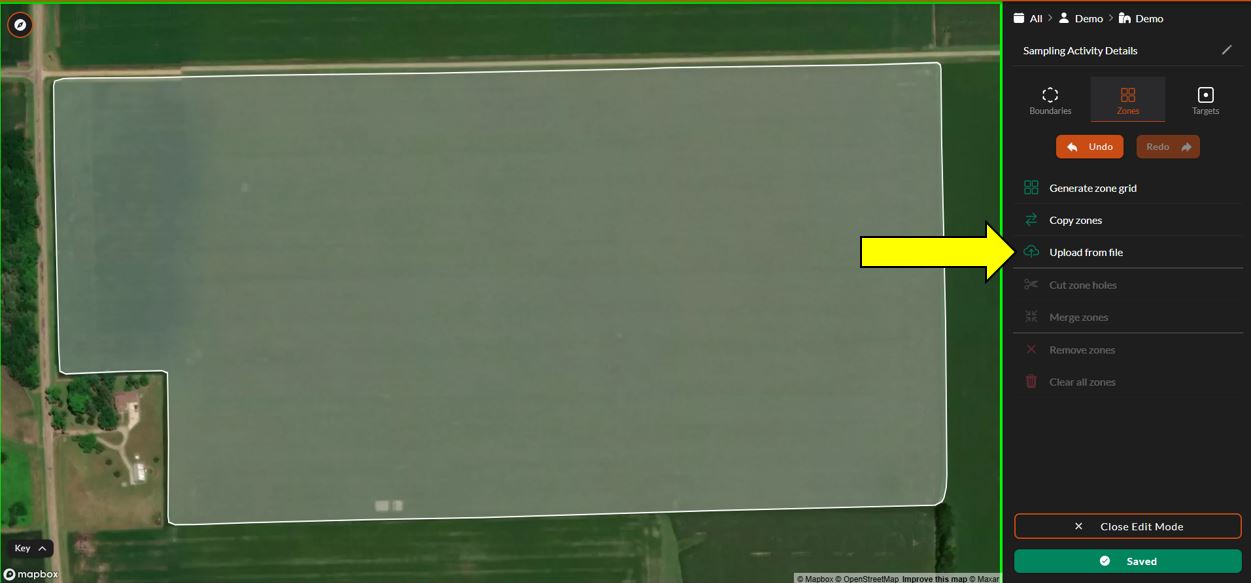

On the zone edit page, select Upload from file
On the import window, click Select Files and choose the zone shapefile to import, and then click Import

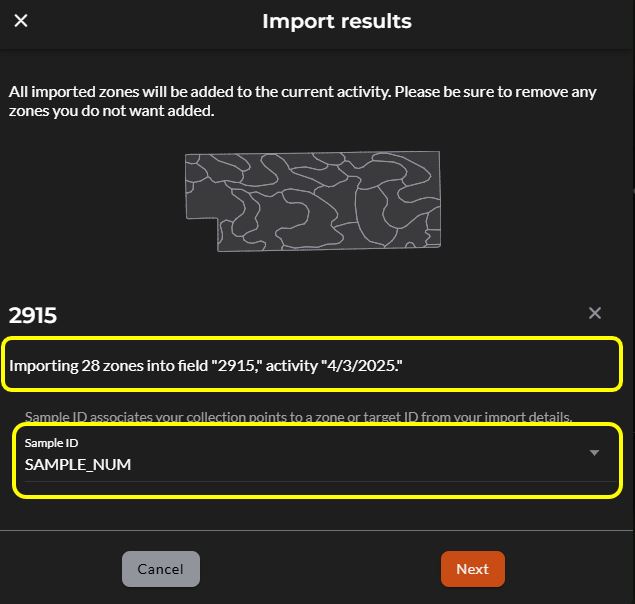

The import results window will show a preview of the shapefile and display the field and activity name that the zones will be imported in to. Select the Sample ID attribute at the bottom of the window, if necessary. Then click Next.
If the selected zone shapefile does not overlap with the active field, a message will appear on the import result window. To cancel and choose a different file, click Cancel, or the "X" on the right of the window. If you want to proceed with the shapefile you have selected, click Next.

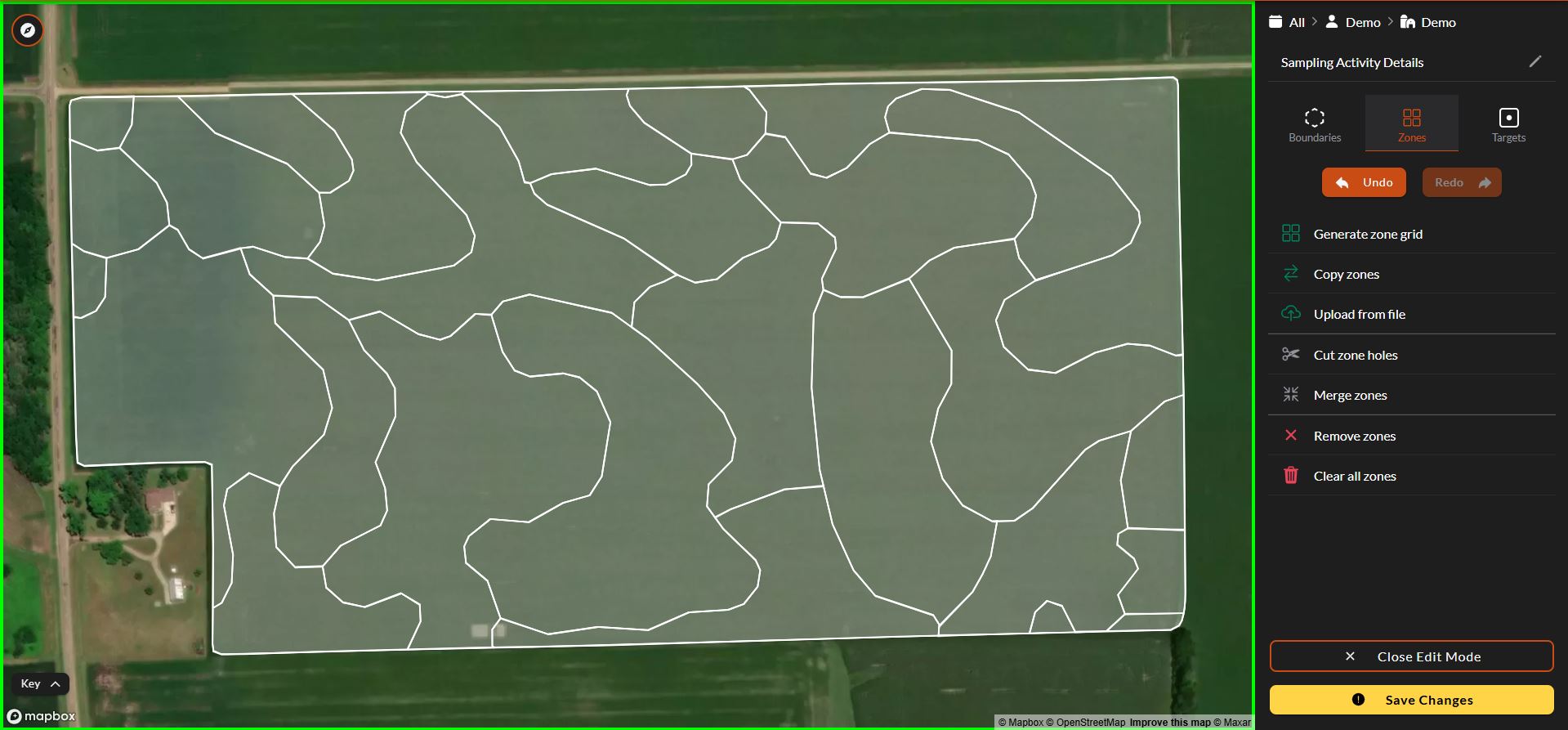

Once Next is clicked, the zones will show on the active field map. Click Save Changes to save the zones to the activity
Points

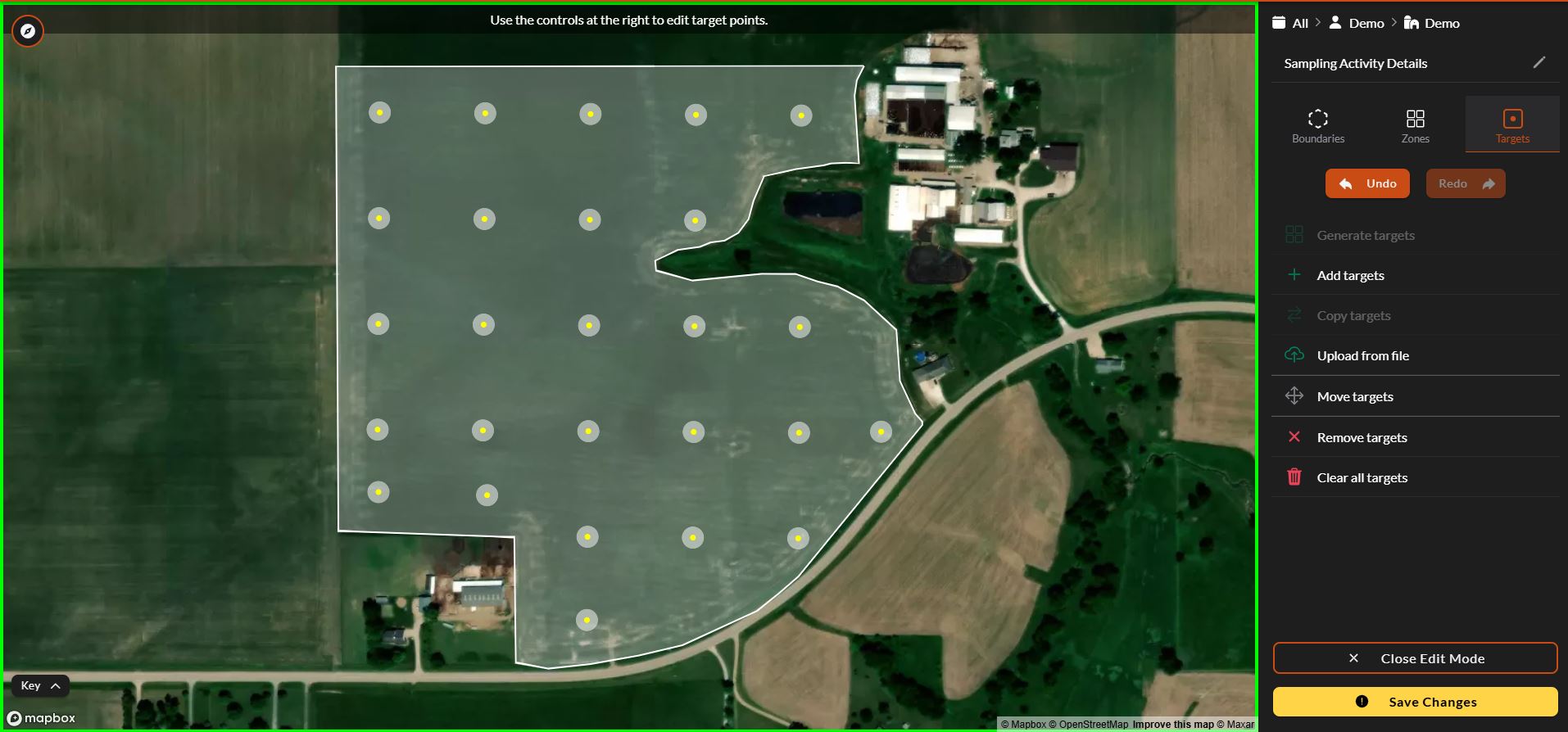

To import target points, select the Targets tab
On the target edit page, select Upload from file

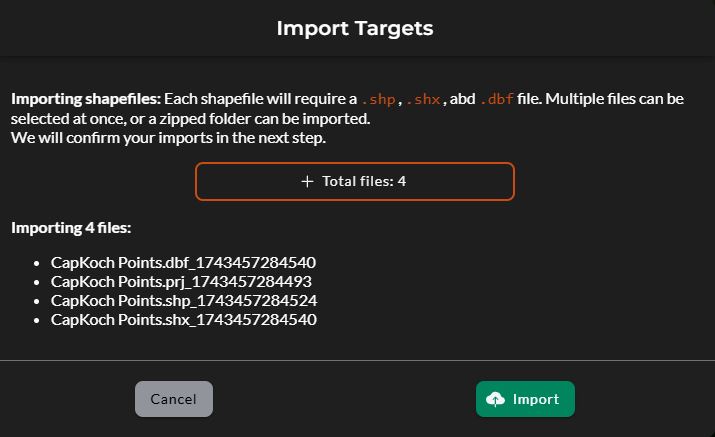

On the import window, click Select Files and choose the point shapefile to import, and then click Import

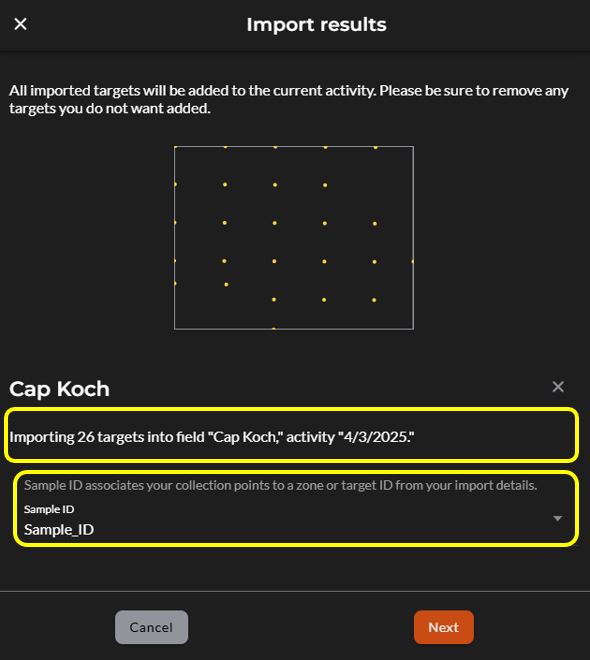

The import results window will show a preview of the shapefile and display the field and activity name that the points will be imported in to. Select the Sample ID attribute at the bottom of the window, if necessary. Then click Next.
If the selected zone shapefile does not overlap with the active field, a message will appear on the import result window. To cancel and choose a different file, click Cancel, or the "X" on the right of the window. If you want to proceed with the shapefile you have selected, click Next.
Once Next is clicked, the points will show on the active field map. Click Save Changes to save the points to the activity
