GeoPress Lite Kit Overview and Installation

Kit Items

GeoPress Lite

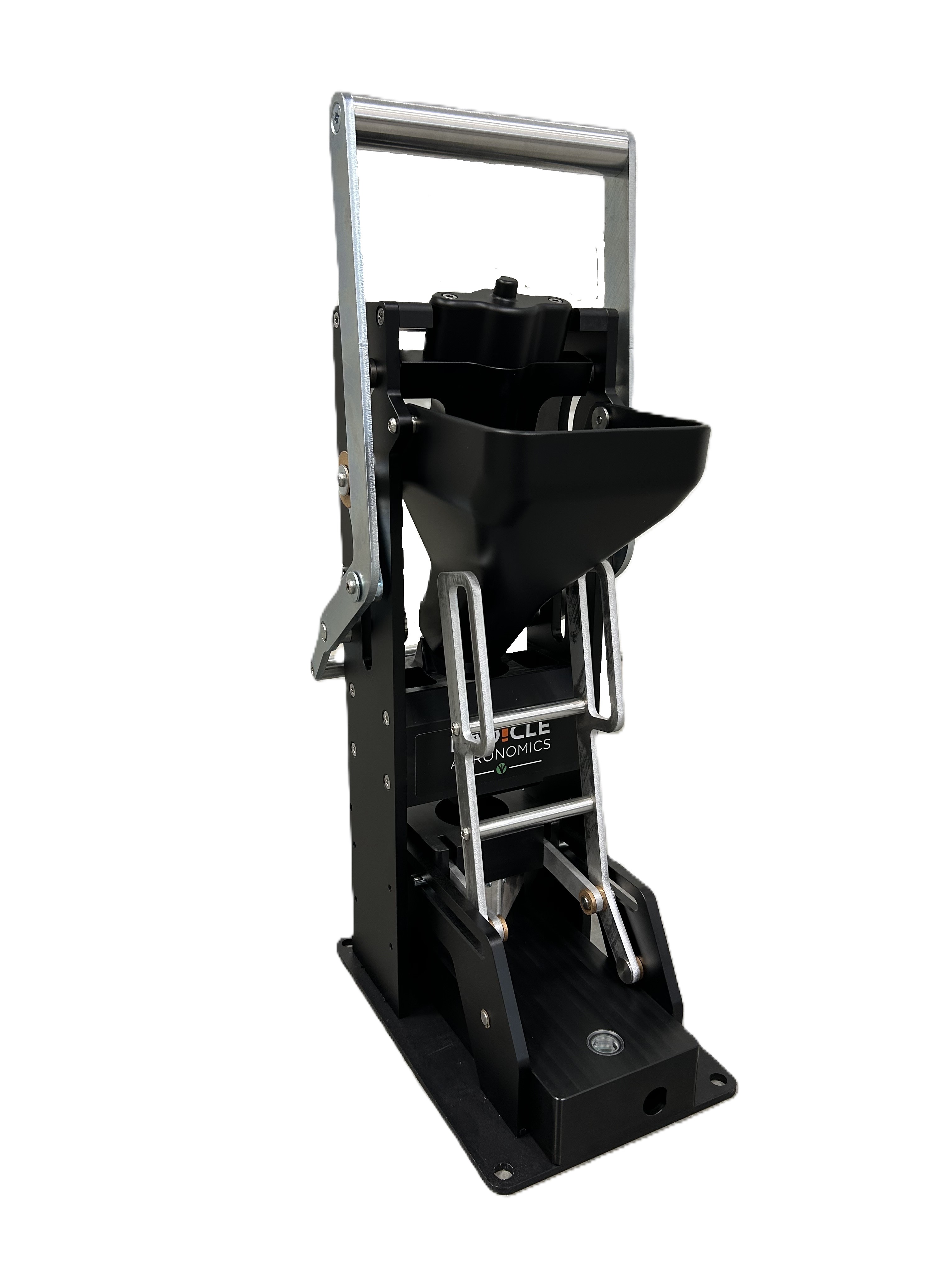

Geopress lite.jpg

Mixer

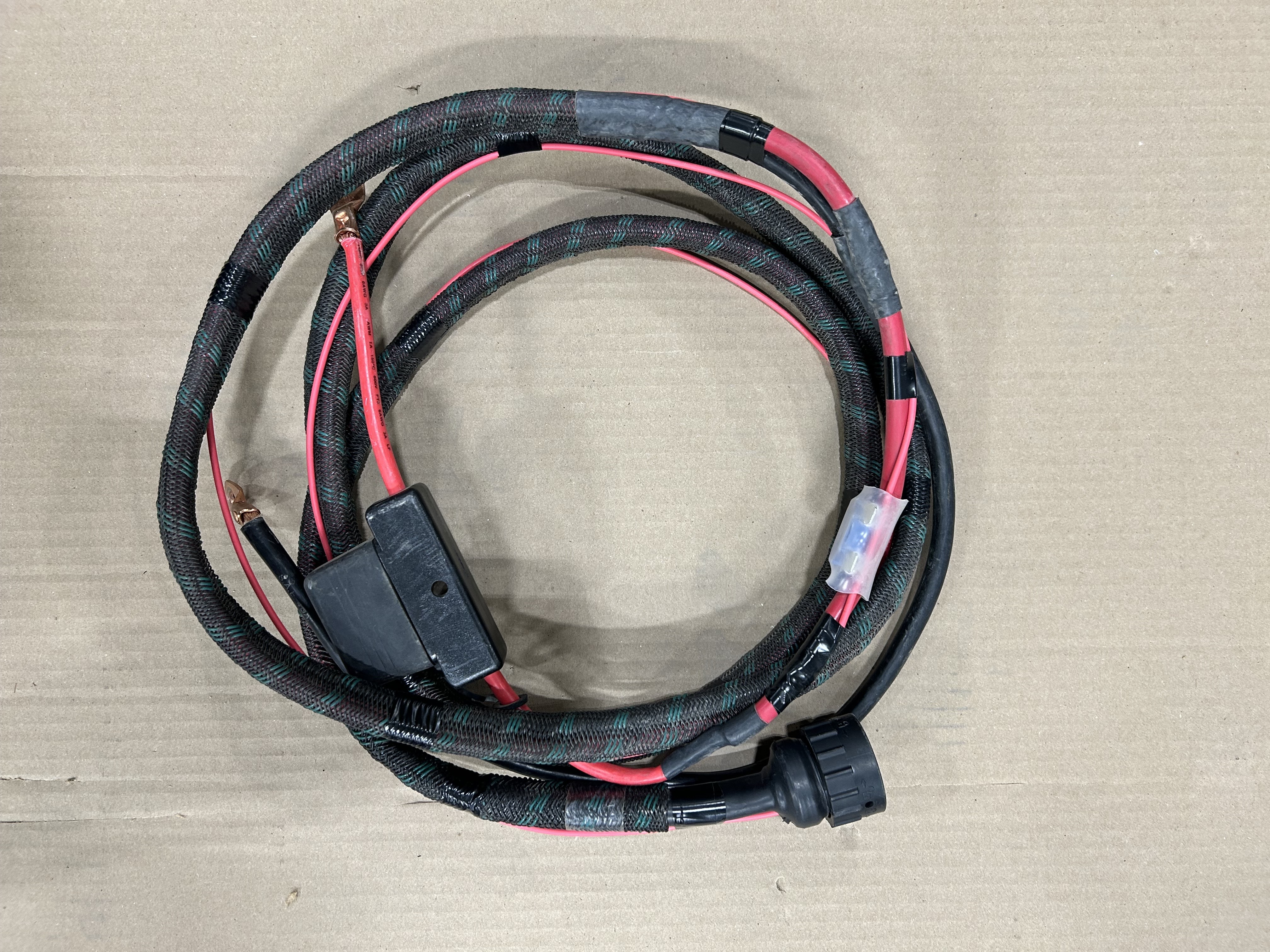

Mixer Power Cable

Connects from vehicle battery to mixer

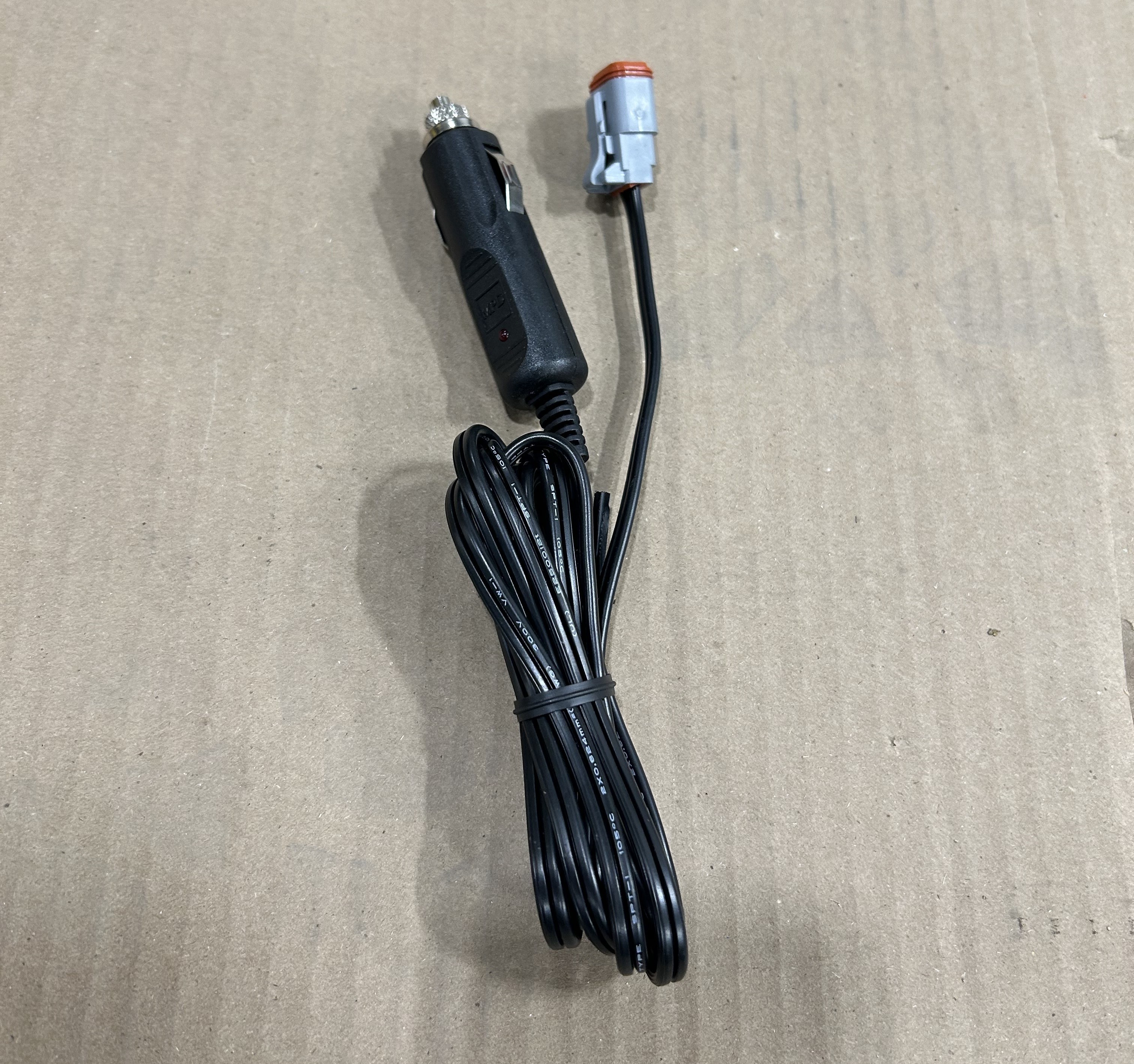

Mixer power cable.jpg

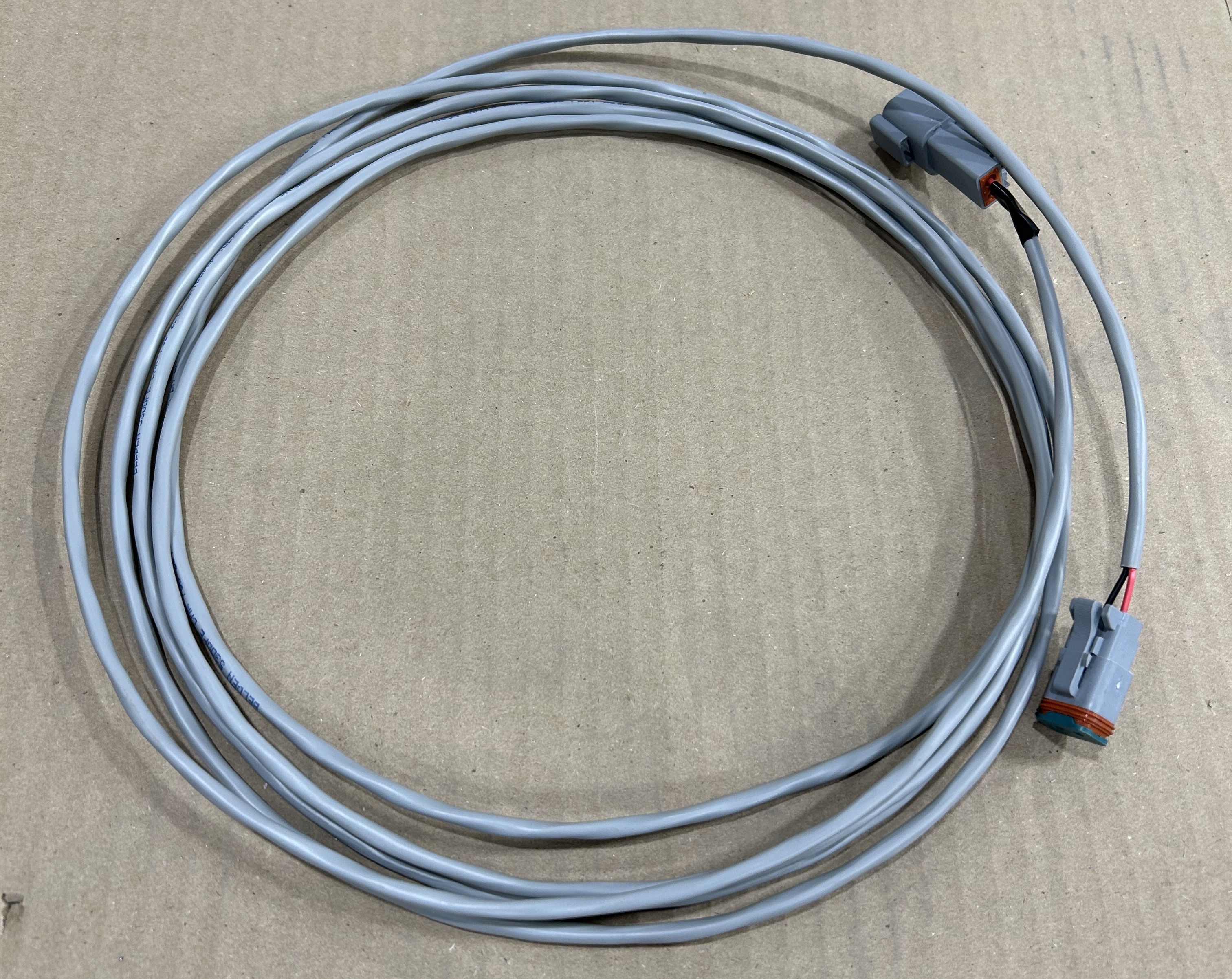

GeoPress Lite Power Extension

Can be used as a power extension, or the end can be modified for a different power source

GeoPress lite power cable.jpg

GeoPress Lite Power Adapter

Auxiliary power adapter for GeoPress Lite. Plugs into the 2-pin receptacle on the back of the GeoPress Lite.

geopress lite powr adapter.jpg

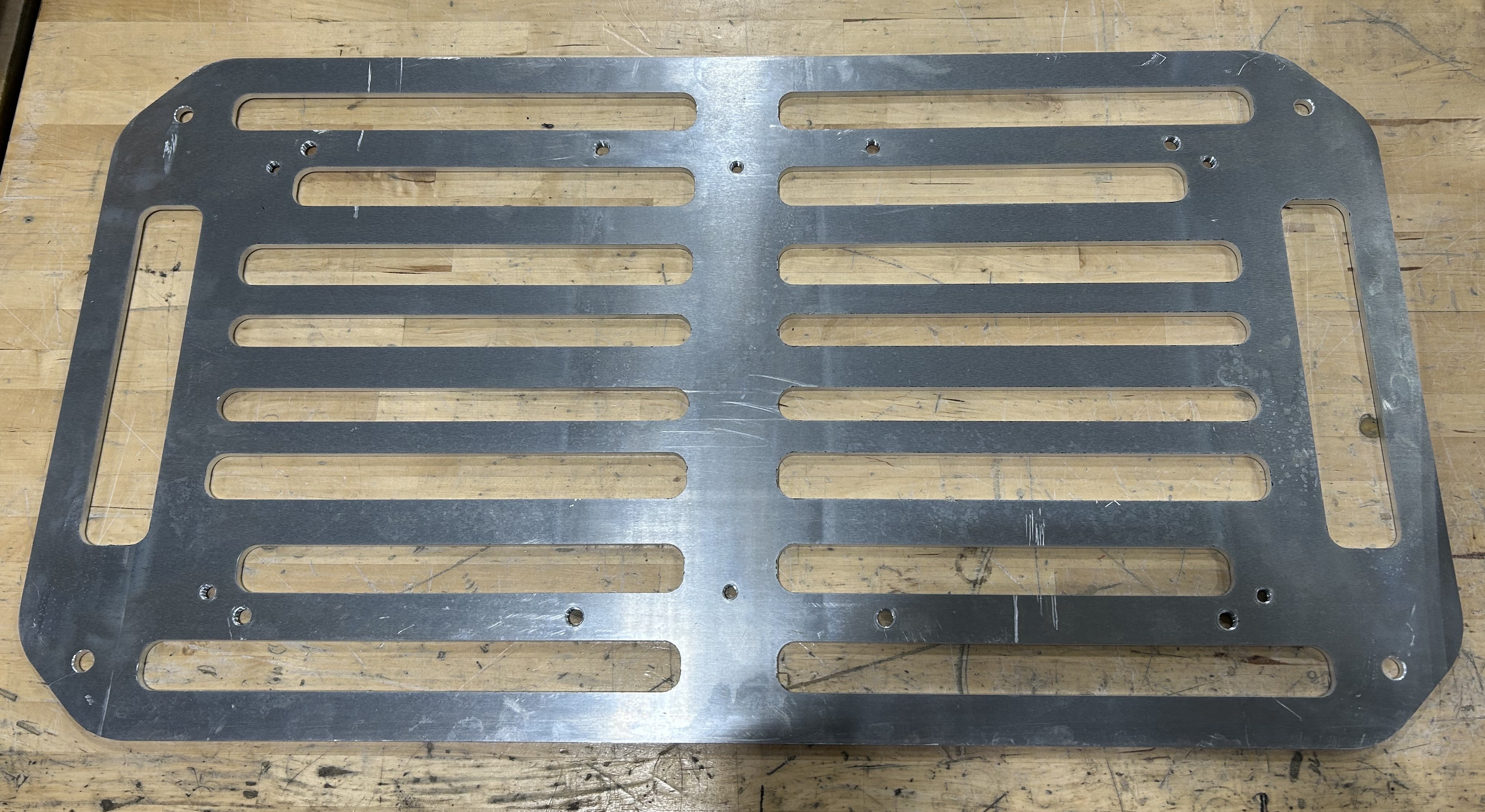

Mounting Plate

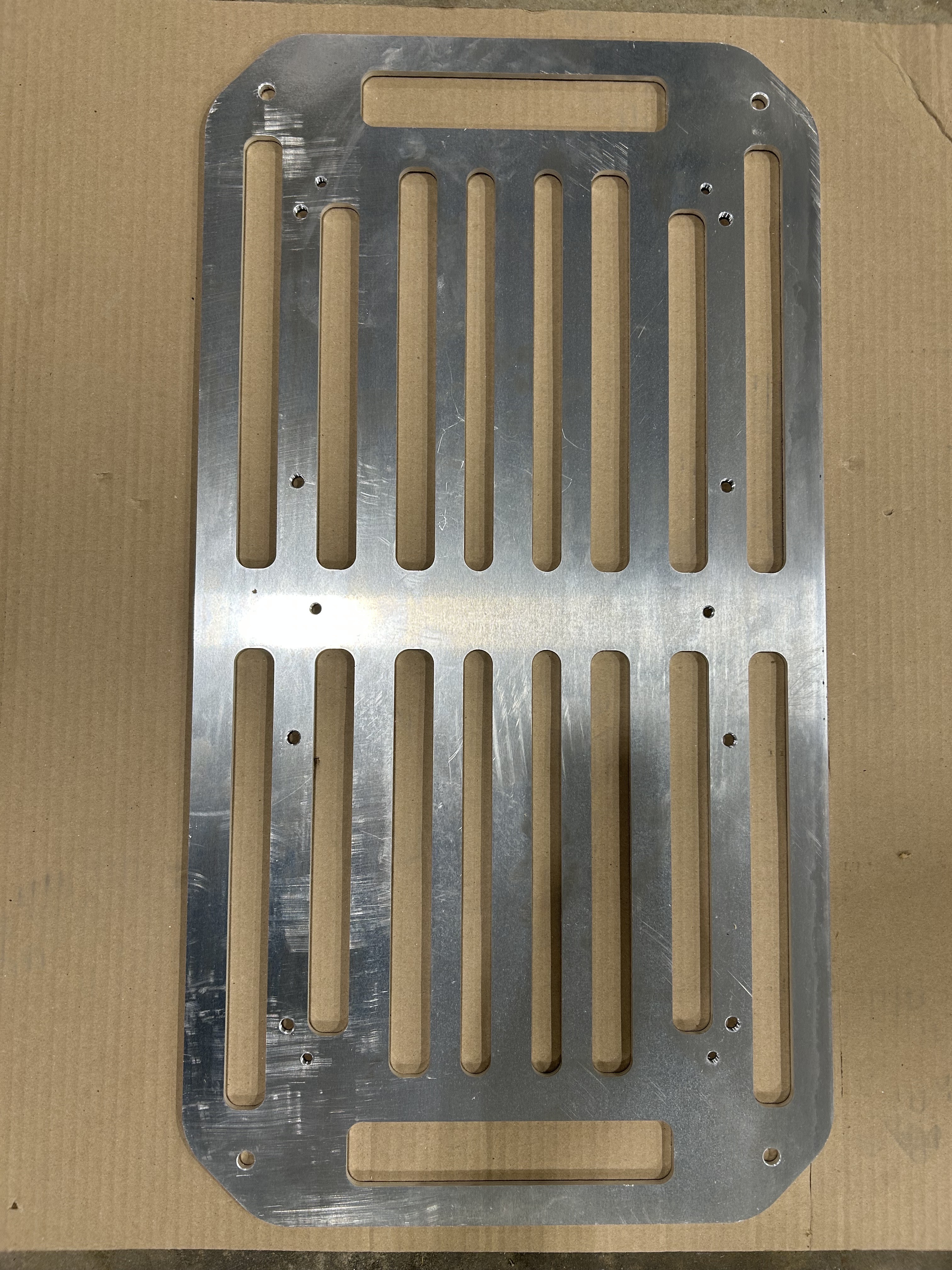

mounting plate.jpg

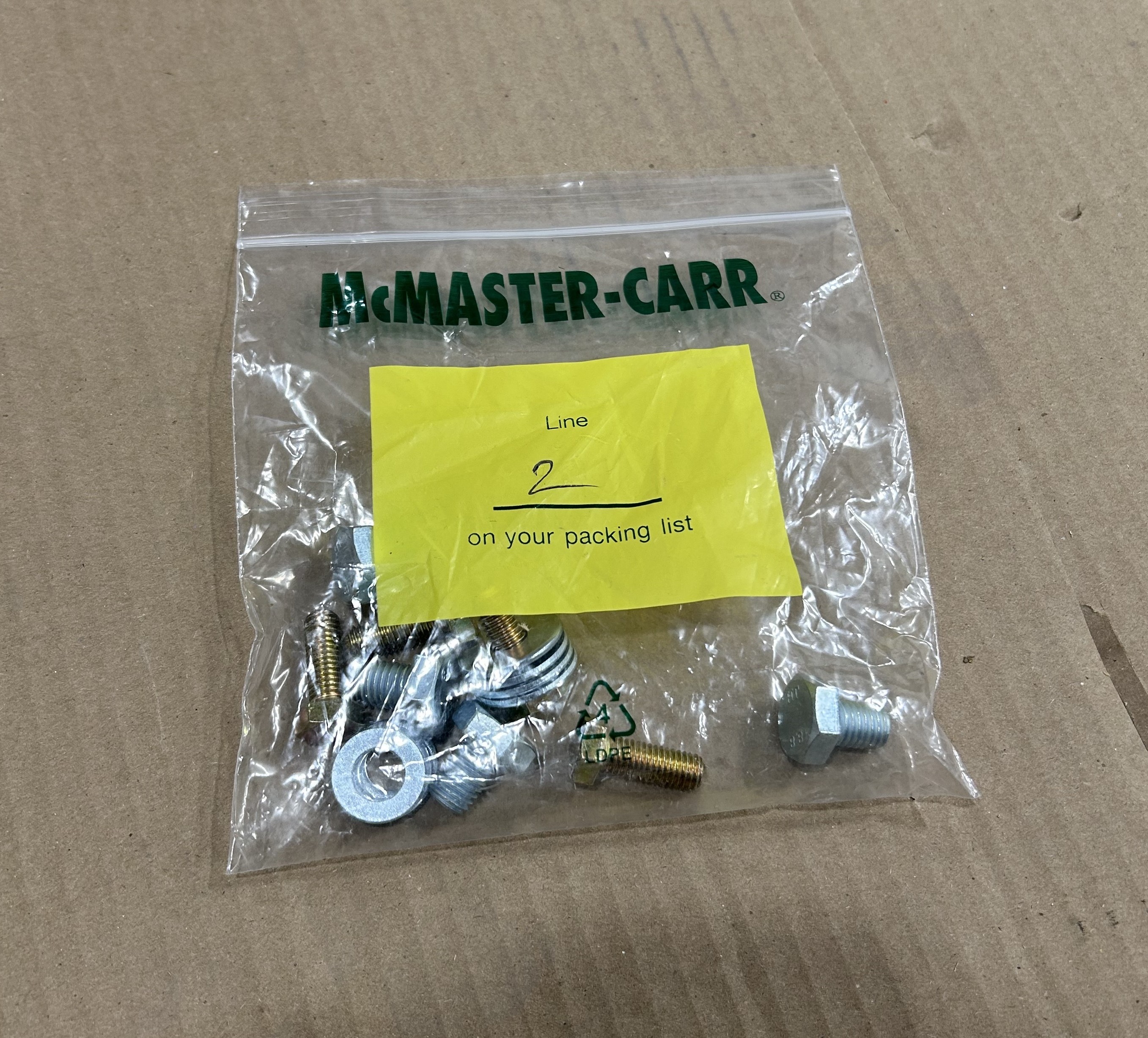

Mounting Hardware

gp lite hardware.jpg

Mounting Plate Installation

The GeoPress Lite kits include a mounting plate as an option to secure the GeoPress and mixer together. Below are instructions for securing the mixer and GeoPress Lite to the plate.

  1. Set the mounting plate on a surface for assembly. The plate can be oriented in any direction.
mounting plate assembly.jpg
  1. Align the mixer with the 8mm holes on the left side of the plate

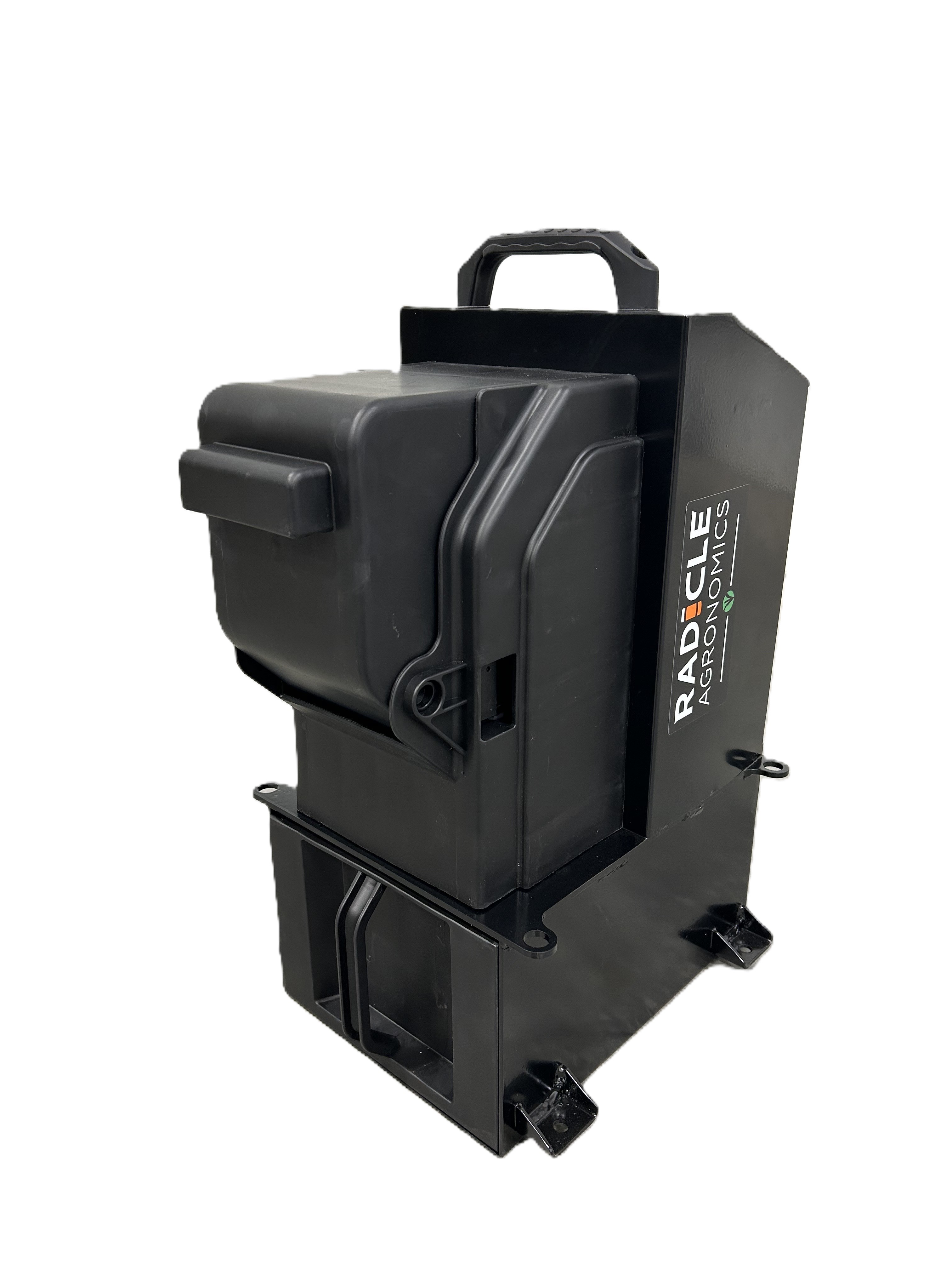

mixer mounting.jpg
  1. Using the M8x25mm bolts and two washers, secure all four corners of the mixer to the plate. Start a bolt on each corner of the mixer before tightening the mixer to the plate.

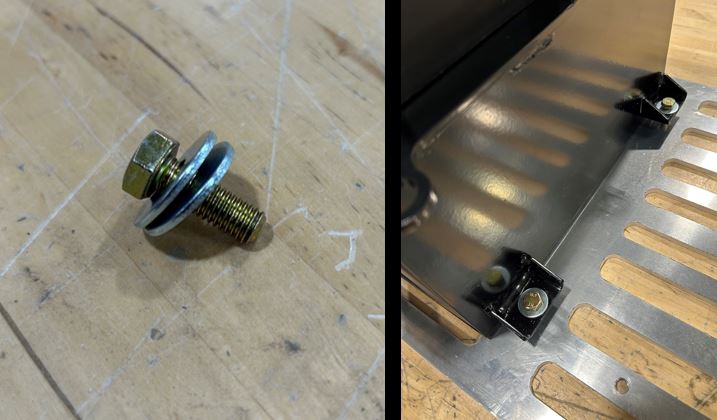

mixer bolts.JPG
  1. Align the GeoPress Lite with the 10mm holes on the right side of the plate

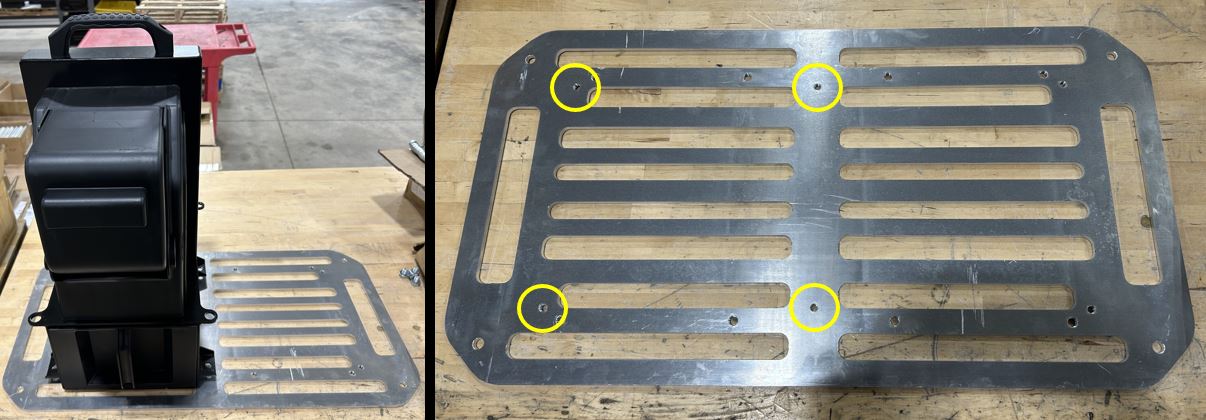

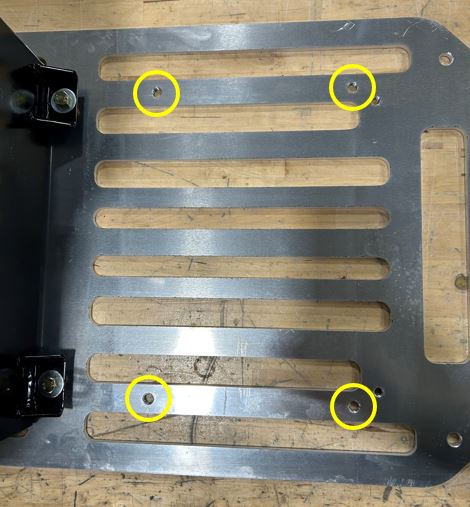

GP lite mounting holes.JPG
  1. Using the M10x14mm bolt and one washer, secure the GeoPress Lite to the mounting plate. Start a bolt on each corner of the GeoPress before tightening the mixer to the plate.
geopress lite mounting.JPG
  1. Mounting plate assembly is complete

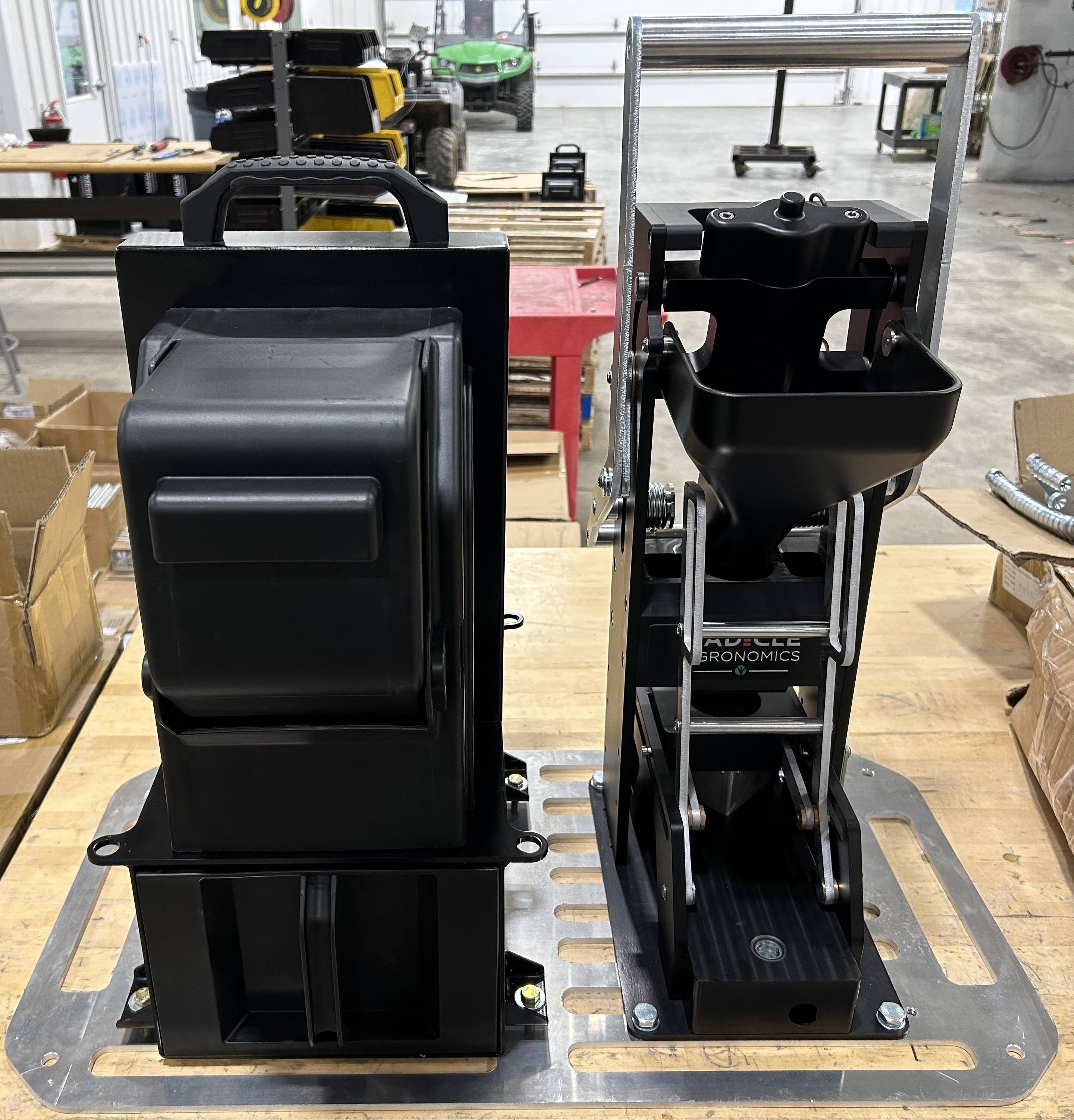

GeoPress Lite complete.jpg
