Do Not Turn Label indicating not to turn the screw that the label is covering. These are located on the Pump and Torch inside the Microglow Analyte.
This label indicates that the marked surface or component must not be touched during operation. Contact may interfere with proper equipment function or cause damage to the equipment.
Power Input Label specifies the electrical power requirements for the Radicle Lab. Located on electrical bulkhead assembly on the right side of the Radicle Lab
- Use a power source rated for 208-240 VAC
Ensure the circuit is rated for at least 16A
Backup Power Input Label specifies the electrical power requirements for the Radicle Lab (see details on Power Input Label listed above). Located on electrical bulkhead assembly on the right side of the Radicle Lab.
Water input label located on the left side of the bulkhead assembly that is located on the right side of the Radicle Lab. This label specifies where to install the water supply and the acceptable water inlet pressure range for the Radicle Lab.
Air Input label located on the middle left of the bulkhead assembly that is located on the right side of the Radicle Lab. This label specifies where to install the air supply and acceptable air inlet pressure range for the Radicle Lab.
Chemical Waste label located on the middle right of the bulkhead assembly that is located on the right side of the Radicle Lab. This label specifies where to install the connection for chemical waste.
Slurry Waste label located on the right side of the bulkhead assembly that is located on the right side of the Radicle Lab. This label specifies where to install the connection for the soil slurry waste.

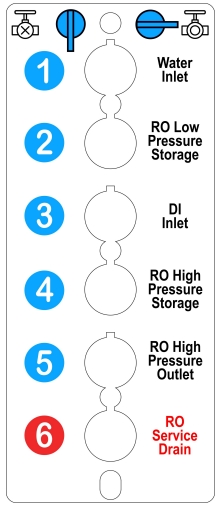

This label specifies what each valve is responsible for:
- Water Inlet- Controls the main incoming water supply to the system
- RO Low Pressure Storage- Directs water into the low-pressure storage tank
- DI Inlet- Controls water flow into the Deionization (DI) stage
- RO High Pressure Storage- Directs water into the high-pressure storage tank
- RO High Pressure Outlet- Controls the discharge of high-pressure RO water to the system or point of use
- RO Service Drain- Used to drain water from the system
