Sharing Soil Test Results and Prescriptions with Panorama

Soil test maps and fertilizer prescriptions can be shared to a Panorama account that is linked to the Radicle App. Below are instructions for connecting accounts, and sharing data to Panorama

  1. Follow steps 1-5 of the Connecting to Panorama article to connect an existing Panorama account to the Radicle App

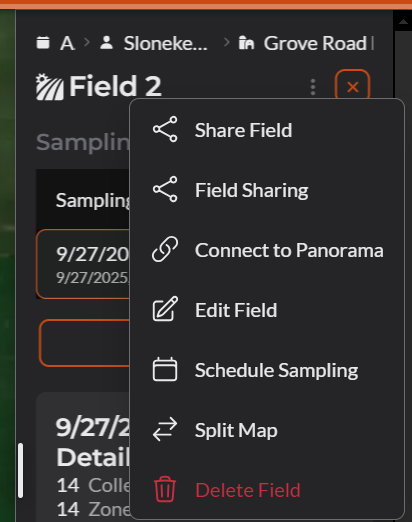

  2. Once connected, fields in the Radicle App can be linked to fields in Panorama. Do so by opening a field, and clicking the menu button next to the field name. Then select Connect to Panorama

    Connect to Panorama.PNG

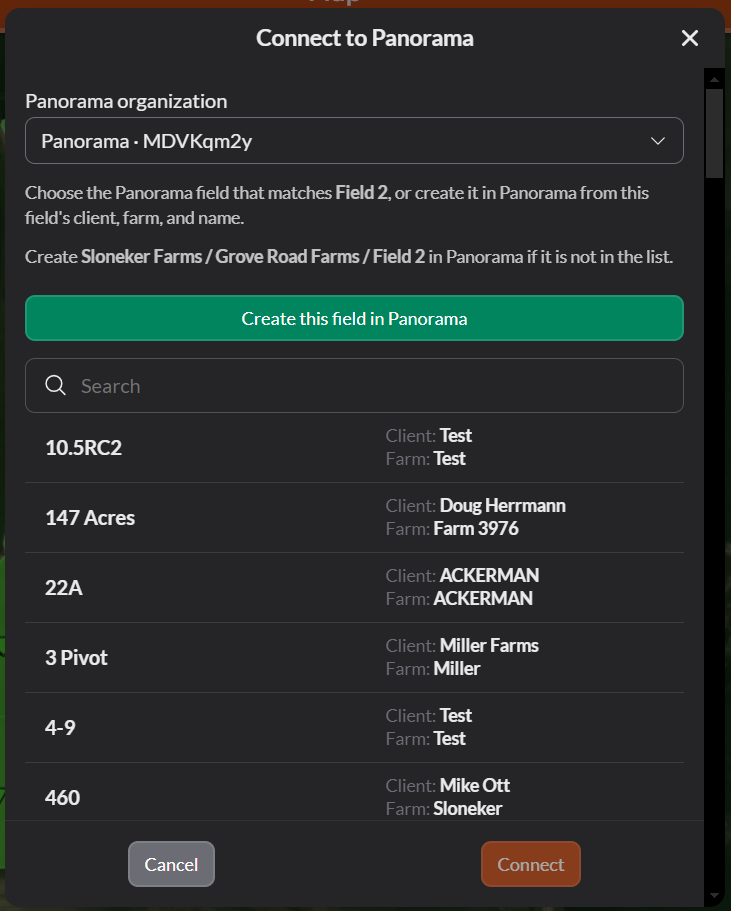

  3. If the field already exists in Panorama, then select it from the field list. If the field does not exist on the Panorama account, then select Create this field in Panorama.

    create field in panorama.PNG

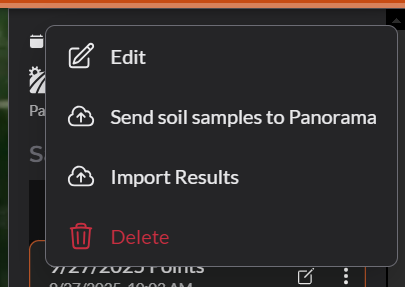

  4. Once the field is linked, click on the menu next to the activity name that has analyzed soil test data and select Send soil samples to Panorama.

    send results to panorama.PNG

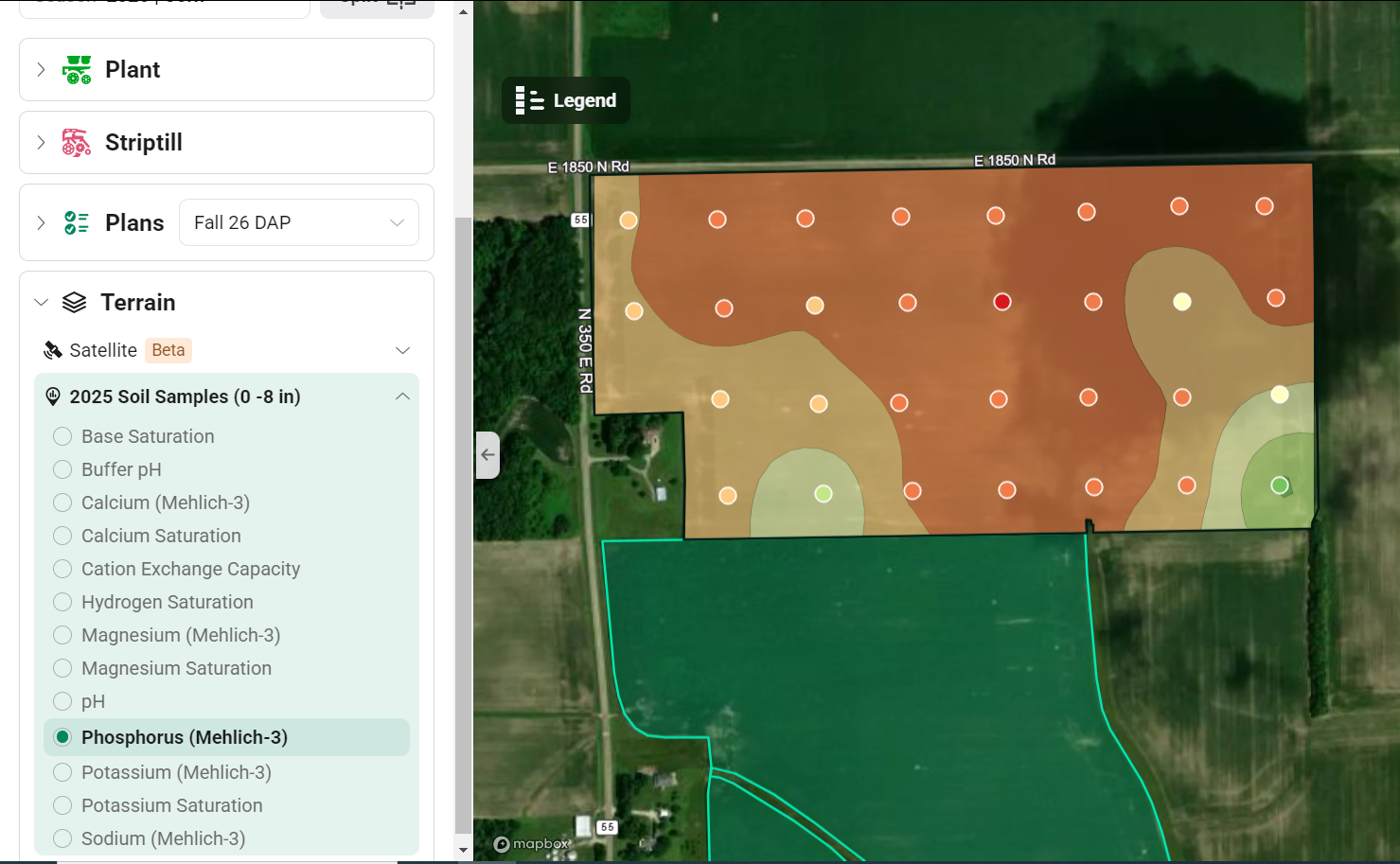

  5. This will save the soil test map layer under the Terrain section in Panorama

    panorama result map.PNG

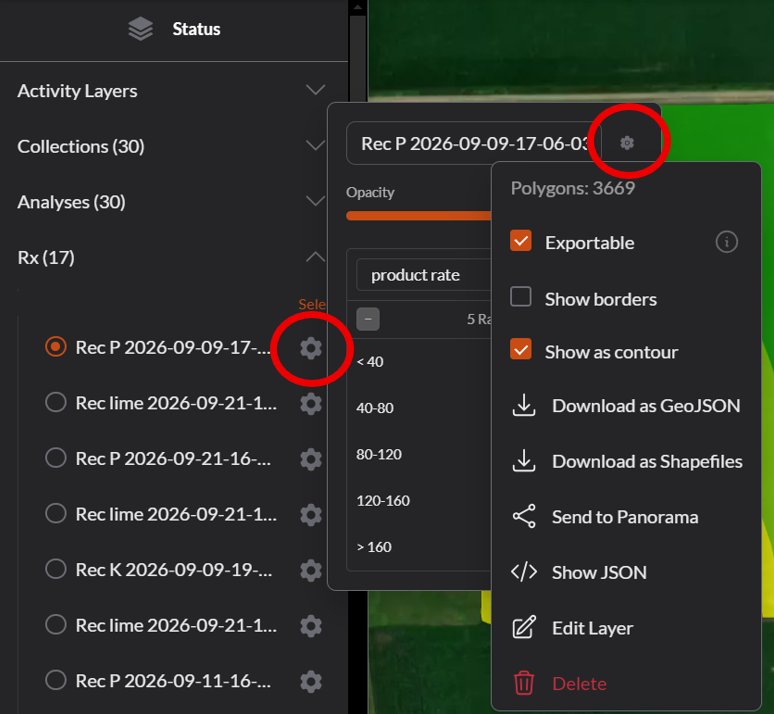

  6. Generated fertilizer prescription maps can also be shared with Panorama. To do this, open a prescription layer from the map layer menu in the upper left corner of the map. Then select the settings icon next to the Rx map layer, then the layer settings icon in the upper right corner of the menu (circled in red)

    send rx to panorama.PNG
  7. Click Send to Panorama to share the prescription with the linked Panorama account

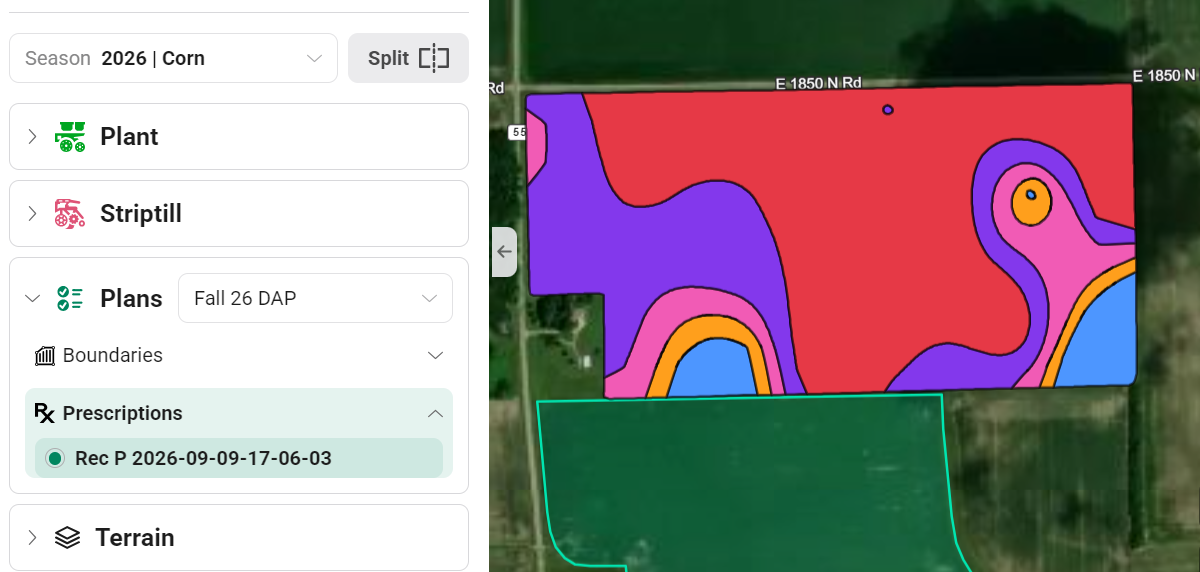

  8. The prescription will be saved under the Plans section of the field on Panorama

    panorama Rx plans.PNG
